How to Choose the Right Travel Motor Assembly for a Hitachi ZX200 Excavator

Quick Answer

Key Takeaways

• The ZX200 travel device is a two-speed travel motor with planetary reduction and a built-in parking brake (designation HMGF38DA).
• Eight part numbers are quoted for the ZX200 travel device — they reflect different builds and revisions, not one interchangeable part.
• On this machine the fit is decided by flange hole pattern, two-speed function, and brake and port layout.
• "Direct fit" means original mounting dimensions — you should not have to re-drill, space or re-plumb anything.
• It is a heavy item (about 300 kg), so a wrong unit costs real freight and real downtime.
• Order from the plate on the old unit plus the machine serial, never from the model name alone.

Table of Contents

• 1. What the ZX200 Travel Motor Assembly Is
• 2. Eight Part Numbers, One Machine
• 3. The Three Checks That Decide Fitment
• 4. What "Direct Fit" Really Requires
• 5. Two-Speed Travel: Why It Matters on Site
• 6. Complete Assembly, Motor Only, or Gearbox?
• 7. Confirm Before You Order
• 8. FAQ
• 9. Get Your Travel Assembly Confirmed

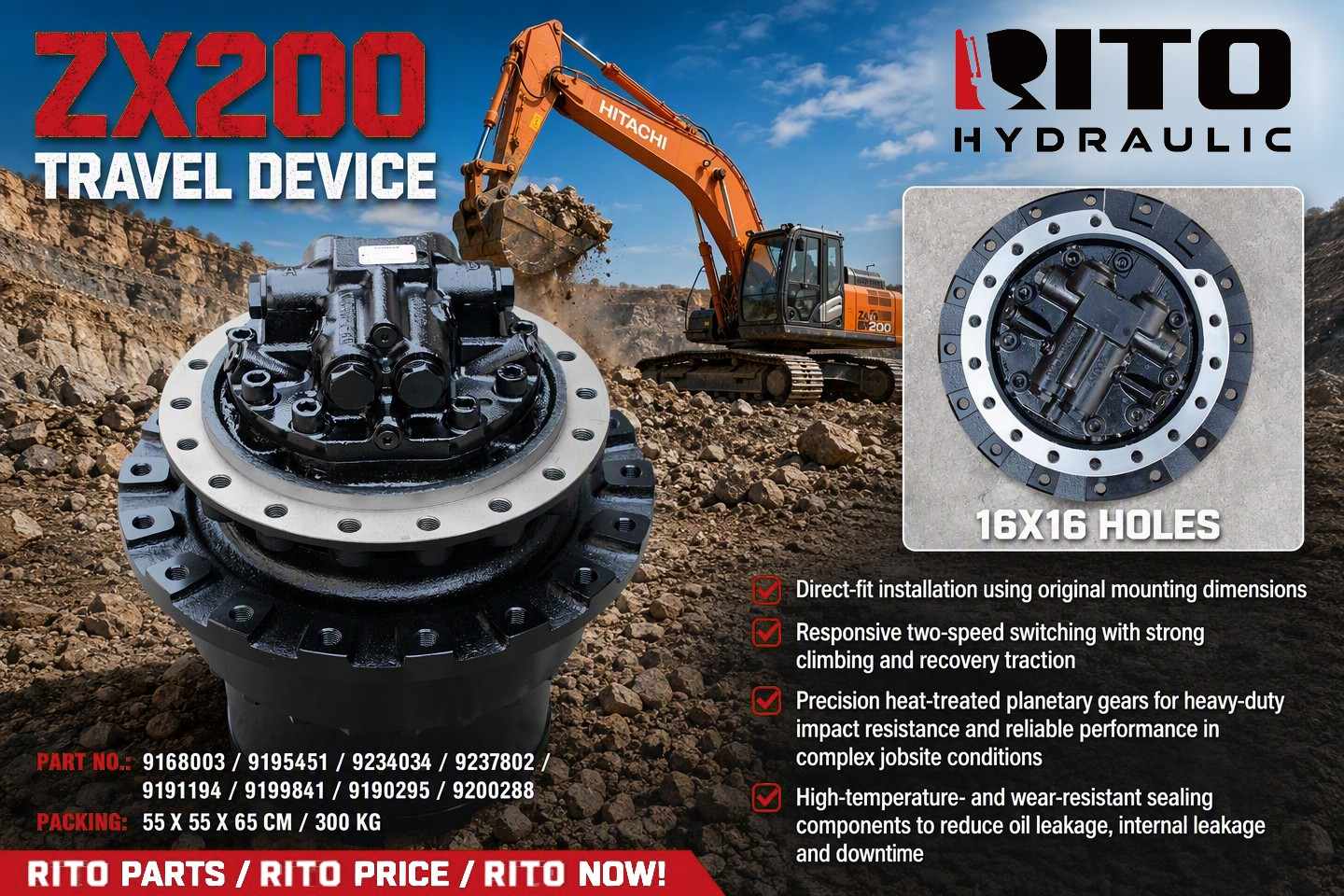

1. What the ZX200 Travel Motor Assembly Is

The travel motor assembly — also called the travel device or final drive — lives inside each track of the machine. It does three jobs at once, and that combination is why it is sold as a matched assembly rather than a loose motor:

• It converts hydraulic flow into rotation through an axial-piston motor.
• It multiplies torque and slows the output through built-in planetary reduction, so the sprocket can pull the machine.
• It holds the machine still through a built-in parking brake.

On the ZX200 that assembly is a two-speed unit: the operator can select a high range for moving around site and a low range for climbing and for pulling out of a cut. The assembly is known by the designation HMGF38DA, which is the name to know when you are searching for this machine.

Two details are worth holding onto. First, the travel assembly is not the same thing as the swing motor — they look similar in photographs and do completely different jobs, which is why buyers mix them up. If you are not certain which one you are looking at, our guide to travel motor versus swing motor settles it in a minute. Second, the ZX200 travel device shares its design with machines built on the same Hitachi platform, so the same assembly also appears against other nameplates — including the John Deere 200CLC, which was built on the shared Hitachi chassis. If you own one of those, this is the same part you are hunting for.

Complete travel devices and the wider range sit under Hitachi-series hydraulic parts if you want to see what else shares this family.

2. Eight Part Numbers, One Machine

This is the part of the purchase that trips people up. Search for a ZX200 travel motor and you do not find one number — you find a crowd of them, and every seller sounds certain. The product sheet for this assembly quotes eight:

Why so many for one machine? Because "ZX200" is a nameplate, not a single build:

Two practical rules follow. Do not choose the number you saw first — read your own unit and have the number cross-checked against the current reference. And a group of numbers listed together is a seller's grouping, not the manufacturer's statement that they interchange. The only safe source is the plate in front of you.

3. The Three Checks That Decide Fitment

Once you have the number, three physical checks decide whether the unit that arrives will actually go on. On this machine they are the ones that matter most:

There is a longer general checklist for travel motors — left and right orientation, reduction ratio, output shaft and sprocket interface — and if you want the full version it is in our travel motor fitment guide. The three above are the ones that most often decide the outcome on a ZX200.

4. What "Direct Fit" Really Requires

"Direct-fit installation using original mounting dimensions" is a specific promise, and it is worth knowing what it rules out. A genuine direct fit means:

• No re-drilling the flange or the track frame.
• No spacers or adapters to make the bolt pattern line up.
• No re-plumbing because the ports sit where the originals sat.
• Correct sprocket interface, so the existing sprocket and its fasteners go straight back on.

When a supplier cannot show that their unit is built to the original mounting dimensions, those four items become your problem on site — and they are exactly the jobs that turn a one-day fit into a week of fabrication.

Weight deserves a line of its own here. This assembly is a heavy item: the product sheet gives roughly 300 kg packed in a 55 x 55 x 65 cm case. That is a two-man, machine-assisted job to move, and it is the reason a wrong unit is so expensive to correct — the freight alone is significant, and the machine sits while it is sorted out. Which is the whole argument for spending five minutes on identification before ordering.

5. Two-Speed Travel: Why It Matters on Site

Two-speed travel is easy to overlook when you are focused on part numbers, but on a working machine it is the feature operators notice every day.

Two-speed switching should be responsive. A unit where the change is slow, or that only travels in one range, is either a control-side problem or an internal fault — and it is worth diagnosing before assuming the whole assembly is finished. The ability to climb and to recover traction is what keeps a machine working on soft or sloped ground, which is precisely the work this class of machine is bought for.

The rest of the assembly earns its keep through materials as much as design. The planetary gears are precision heat-treated for impact resistance, which is what stands up to repeated shock loading in rock and demolition work, and the sealing components are selected to resist high temperature and wear, which is what keeps oil inside the unit instead of leaking past it. Both matter more on a machine that works hard than on one that rarely leaves a yard.

6. Complete Assembly, Motor Only, or Gearbox?

The final decision before ordering is what level of unit you need. There are three practical options, and they are not interchangeable repair strategies:

Getting this wrong is how a machine ends up with a second failure a few months later. The decision logic — how to tell whether the gearbox failed or the whole device did, and when a complete unit beats a repair — is worked through in detail in our guides to the EX1200-6 travel device: gearbox or complete unit and to the ZX870-3 travel device. The reasoning carries across to the ZX200 unchanged; only the part numbers differ.

Whichever level you choose, buy it as a tested unit rather than an unknown rebuild. Replacement assemblies and the wider spare range are grouped under excavator hydraulic parts.

7. Confirm Before You Order

Everything in this guide reduces to a short list. Done once, it turns the purchase into a single round:

• 1. Record the machine model and serial number. The serial is what identifies the build, not the "ZX200" badge.
• 2. Read the plate on the old travel device and record the part number and the assembly designation (HMGF38DA on this unit).
• 3. Count the flange holes and photograph the flange face straight-on.
• 4. Confirm the two-speed function and note whether the machine is two-speed or single-speed.
• 5. Note which side it is — left or right — and photograph the ports, brake and drain lines.
• 6. Describe the fault. Travel weak on one side, noisy, leaking, not holding on a slope or stuck in one range — each points somewhere different.

Sent together, those six items let a supplier confirm the assembly against your machine instead of guessing from a model name. Sent as "one ZX200 travel motor", they become a 50-50 bet on a 300 kg part.

8. FAQ

Q1: What travel motor does a Hitachi ZX200 use?

It uses a two-speed axial-piston travel motor with built-in planetary reduction and a parking brake, known by the designation HMGF38DA. It is supplied as a complete travel assembly rather than a bare motor. Confirm the exact part number from the plate on your own machine.

Q2: Why are there eight part numbers for a ZX200 travel device?

Because "ZX200" covers more than one build. Model generations, supersessions and neighbouring models on the same platform all produce different numbers, and several of them circulate in the market at once. That is why the plate, not the model name, decides the order.

Q3: Is 9200288 the right number for a ZX200?

9200288 is the number commonly associated with the HMGF38DA travel motor for the ZX200 and ZX200LC. It is one of several numbers quoted for this machine, so treat it as a strong lead and confirm it against your own plate and serial.

Q4: What does HMGF38DA mean?

It is the assembly designation for this travel device. In practice it is the most useful name to search with, because it identifies the unit rather than the machine — and the same unit appears on other machines built on the same platform.

Q5: Will the same travel motor fit a John Deere 200CLC?

The 200CLC was built on the shared Hitachi chassis, and the same travel motor is used on it. If you are sourcing for a 200CLC, you are looking for the same assembly — confirm by plate and serial as usual.

Q6: How do I know if my travel motor is two-speed?

If the machine has a travel speed selection — typically a switch or a pedal position that changes track speed — it is two-speed. Note that when you order, because a single-speed and a two-speed unit are not interchangeable.

Q7: What does 16 x 16 holes refer to?

It refers to the hole pattern of the mounting flange on this assembly, as shown on the product sheet. Count the holes on your old unit and photograph the flange face so the pattern can be matched before shipping.

Q8: My ZX200 travels weakly on one side only. Is it the assembly?

Not necessarily. One-side weakness can come from the travel motor, but also from the control valve section, the relief settings or a cross-line leak. Test pressure and flow before condemning the assembly; only one-side faults accompanied by noise, metal or leakage point firmly at the unit itself.

Q9: Should I buy a complete assembly or just the motor?

Buy the level that matches the actual damage. If wear spans the motor and the reduction, a complete assembly is the lower-risk route; a motor-only or gearbox-only repair is reasonable only when the rest of the unit has genuinely been inspected.

Q10: What should I send to get a quotation?

The machine model and serial number, the part number and designation from the old unit, the flange hole count, whether the machine is two-speed, which side it is, photos of the ports and brake, and a description of the fault.

9. Get Your Travel Assembly Confirmed

Send us your machine serial number, the part number from the old travel device, the flange hole count and photos of the ports and brake — plus a note of what the machine does wrong — and our team will confirm the correct assembly for your ZX200, tell you whether a motor-only or complete unit is the sensible route, and quote lead time the same day. RITO HYDRAULIC supplies complete, individually tested travel motors, final drives, main pumps, swing motors and control valves for Hitachi, ZAXIS models, Komatsu, Caterpillar, Kobelco, Hyundai, Doosan and SANY machines — with export packing and a 6–12 month warranty.
