CAT M315/M316/M317/M318 Swing Gearbox (152-7375): When to Replace & How to Choose the Right One (2026)

Quick Answer

Key Takeaways

• The swing gearbox turns the upper structure of M315/M316/M317/M318 wheeled excavators — a different component from the travel gearbox that drives the wheels.

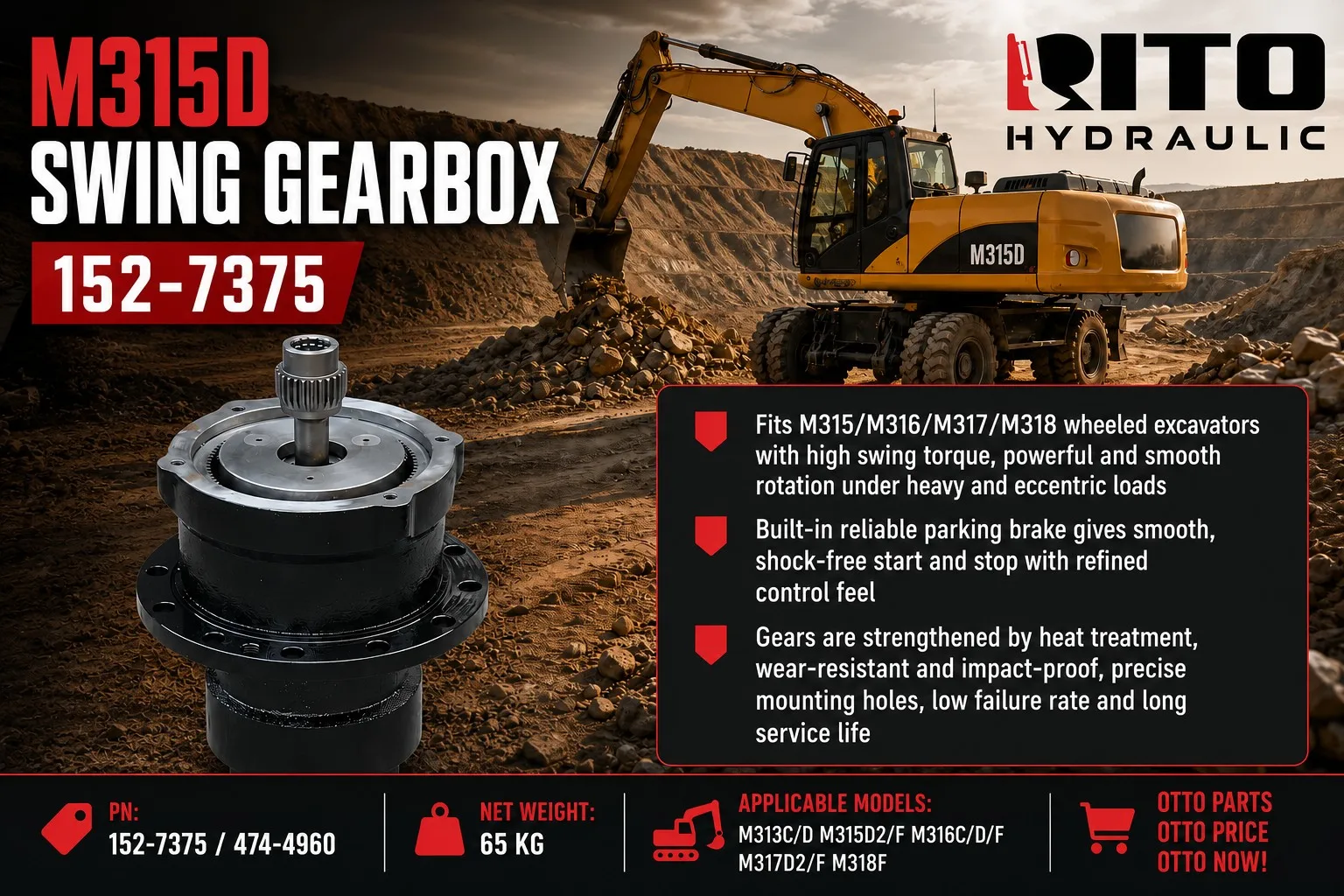

• Reference part numbers: 152-7375 / 474-4960. Confirm the number stamped on your drive before ordering.
• Fits the wider M-series family: M313C/D, M315D2/F, M316C/D/F, M317D2/F, M318F.
• High swing torque gives powerful, smooth rotation under heavy and eccentric loads — critical for crane-style and side-casting work.
• The built-in parking brake provides smooth, shock-free starts and stops; when it fails, the machine creeps or jerks on slopes.
• Heat-treated gears are wear-resistant and impact-proof — most failures come from neglected oil or overload, not normal wear.

Table of Contents

1. What the Swing Gearbox Does on a Wheeled Excavator
2. M315/M316/M317/M318 Swing Gearbox Data
3. Why Swing Gearboxes Wear Out — and How to Spot It Early
4. Parking Brake Failure: The Overlooked Warning
5. Part Number Guide: 152-7375 vs 474-4960
6. Choosing a Replacement: What to Verify
7. Installation Notes for Swing Gearbox Replacement
8. Real Case: Thailand Customer Swing Gearbox Supply
9. FAQ
10. Get Your Swing Gearbox Quote

1. What the Swing Gearbox Does on a Wheeled Excavator

The swing gearbox (also called swing drive or rotary drive) sits between the hydraulic swing motor and the slew ring bearing. It reduces the motor's high-speed rotation into the low-speed, high-torque motion that turns the excavator's upper structure. On M-series wheeled excavators, the swing system works constantly — every loading cycle, every reposition, every side-cast move puts torque through this gearbox.

What makes the M-series swing system distinctive is the demand for smooth control under eccentric loads: a wheeled excavator often works with the boom offset to one side, which loads the swing drive unevenly. A gearbox that cannot hold that load smoothly produces jerky, hesitant rotation — and over time, accelerated wear.

2. M315/M316/M317/M318 Swing Gearbox Data

3. Why Swing Gearboxes Wear Out — and How to Spot It Early

Swing gearbox failures rarely happen without warning. The wear develops over time, and the signs are specific:

4. Parking Brake Failure: The Overlooked Warning

The M-series swing gearbox integrates a parking brake that holds the superstructure in position when the machine stops. This is easy to overlook during diagnosis — operators often blame the swing motor or control valve first. The brake's symptoms are distinct:

• The superstructure creeps or drifts when the machine is parked on a slope.
• Starting and stopping the swing motion feels sudden or jarring — the brake grabs instead of releasing smoothly.
• The machine shows a swing-lock fault on the monitor even when the motor itself tests healthy.

A new swing gearbox restores the smooth, shock-free start and stop that operators expect — the "refined control feel" that separates a healthy machine from a tired one. If your M315/M316/M317/M318 shows any of these signs, the gearbox assembly — not just the motor — deserves attention.

5. Part Number Guide: 152-7375 vs 474-4960

Two part numbers appear on this swing gearbox: 152-7375 and 474-4960. Buyers often ask which one they need. The relationship is usually one of the following:

• One number is the current supersession of the other (a manufacturer part-number update).
• The two numbers may correspond to different machine serial ranges within the M-series family.
• One may be the complete drive assembly reference while the other covers a variant with a different brake or flange configuration.

Because the exact relationship depends on your machine serial, the correct approach is simple: read the number stamped on your existing drive and match it. If both numbers appear in your records, give the supplier both plus your machine serial number — RITO HYDRAULIC confirms the correct match before shipment.

6. Choosing a Replacement: What to Verify

• Machine identification: exact model (M315D2 vs M315F etc.) and serial number — the family looks similar but mounting differs.
• Drive plate number: 152-7375, 474-4960, or the number stamped on your unit.
• Brake configuration: confirm the replacement includes the correct integrated parking brake.
• Mounting holes: precise bolt pattern is essential — the poster specification highlights precision mounting holes as a quality marker.
• Gear quality: heat-treated, impact-proof gears resist the shock loads of eccentric work. Ask your supplier about gear material and heat treatment.

7. Installation Notes for Swing Gearbox Replacement

1. Support the swing drive with a proper hoist — never let the drive hang from the motor or hydraulic lines.
2. Clean the mounting face on the slew ring and check for wear or distortion before fitting.
3. Fit the new gearbox, torque the mounting bolts to spec in a criss-cross pattern.
4. Refill with the correct gear oil grade and quantity; check the oil level after the first run.
5. Cycle the swing slowly at idle, then through full rotation, checking for leaks and smooth operation.
6. Verify the parking brake holds the superstructure on a slope before returning to production.

8. Real Case: Thailand Customer Swing Gearbox Supply

RITO HYDRAULIC regularly supplies swing and travel gearboxes to customers in Southeast Asia and beyond. One Thailand customer, operating a fleet of M-series wheeled excavators, sourced a swing gearbox replacement from RITO after a parking-brake failure sidelined the machine. The complete assembly shipped with the correct brake configuration and mounting pattern, allowing the customer's crew to complete the swap and return the excavator to site duty within a single maintenance window.

That is the practical difference a complete, correctly-matched assembly makes: no parts chasing, no guesswork on brake variants, and minimal downtime on a machine that earns by the hour.

9. FAQ

Q1: What is a swing gearbox on an excavator?

The swing gearbox (swing drive / rotary drive) reduces the hydraulic swing motor's high-speed rotation into the low-speed, high-torque motion that turns the excavator's upper structure on the slew ring.

Q2: What part numbers fit the M315/M316/M317/M318 swing gearbox?

The assembly is referenced as 152-7375 and 474-4960. Confirm the number stamped on your drive and your machine serial number for an exact match.

Q3: What are the symptoms of a failing swing gearbox?

Jerky or hesitant swing rotation, oil leaks at the drive seal, metallic noise when swinging, and superstructure creep on slopes (parking brake wear) are the most common signs.

Q4: Can I just replace the swing motor instead of the gearbox?

Only if the fault is in the motor. If symptoms persist after motor service — especially brake creep or jerky rotation — the gearbox itself is the cause and the complete assembly should be replaced.

Q5: How heavy is the M315 swing gearbox assembly?

Approximately 65 kg — a manageable complete-unit swap for a crew with a small hoist.

Q6: Where can I buy a swing gearbox for an M-series excavator?

RITO HYDRAULIC supplies the 152-7375 / 474-4960 swing gearbox with correct brake configuration, heat-treated gears and export packing. Send your machine model, serial number and drive plate number for a same-day quote.

10. Get Your Swing Gearbox Quote

The CAT M315/M316/M317/M318 swing gearbox keeps your wheeled excavator rotating smoothly under the heaviest eccentric loads. When it wears, a complete replacement with high swing torque, a reliable integrated brake and heat-treated gears restores the machine's refined control feel and keeps the job moving.

RITO HYDRAULIC supplies swing gearboxes, swing motors, travel drives and hydraulic pumps for excavators worldwide. Send your machine model, serial number and drive plate number — we will confirm the correct match, stock and lead time the same day.
