Excavator Swing Motor Selection Guide: How to Choose the Right Replacement for Your Machine (2026)

Quick Answer

Key Takeaways

• A swing motor converts hydraulic pressure into the rotary force that turns the upper structure — the swing gearbox then multiplies that torque to drive the slew ring.
• The number stamped on your old motor's plate is the single most reliable reference for ordering a replacement.
• Confirm the brake type (spring-applied vs hydraulic-release) and relief-valve settings — these differ between machine brands and generations.
• Some excavators use a "motor only" replacement; others need the complete swing drive assembly. Verify which you have before ordering.
• Worn symptoms include weak or slow swing, drifting on slopes, and hard stop/start feel — all pointing to the motor or its brake.
• Buying a tested complete assembly with the correct fit avoids a second teardown when the old unit was already tired.

Table of Contents

1. What a Swing Motor Does — and What Wears Out
2. Data to Collect Before You Order
3. Motor Only vs Complete Swing Drive Assembly
4. Brake & Valve Configuration: The Detail Most Buyers Miss
5. Compatibility: Which Motor Fits Which Machine
6. Signs Your Swing Motor Needs Replacing
7. Installation Notes
8. Choosing a Verified Supplier
9. FAQ
10. Get Your Swing Motor Quote

1. What a Swing Motor Does — and What Wears Out

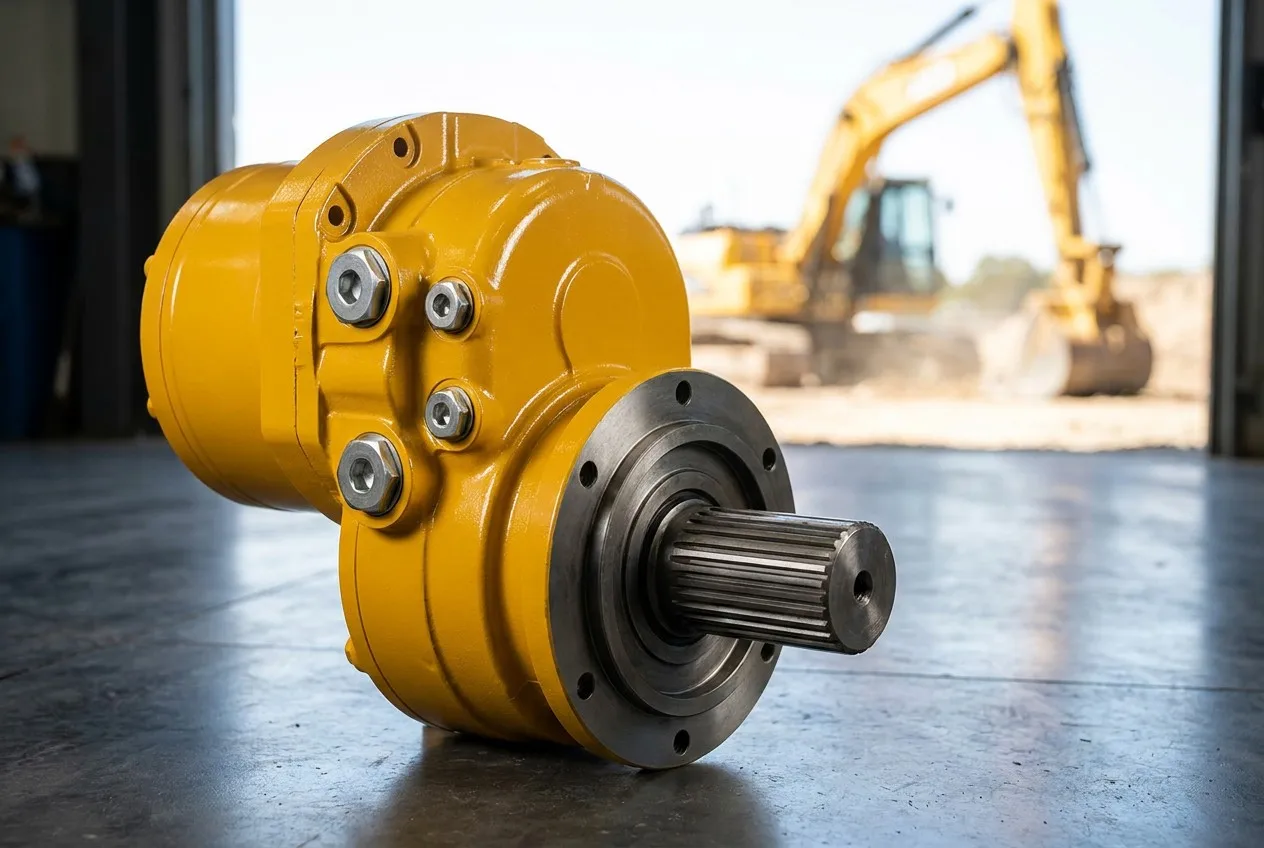

The swing motor is the muscle behind the excavator's rotation. Pressurized oil enters the motor, driving a piston group that spins an output shaft; that rotation passes through the swing gearbox (planetary reduction) to turn the slew ring and the entire upper structure. On a busy machine the swing motor cycles thousands of times a day — every bucket load, every reposition, every truck-side swing.

What wears out over time: the piston group and cylinder barrel lose internal sealing (weak swing), the brake pack loses holding force (drifting on slopes), and shaft or cover seals begin to weep oil. Any of these eventually makes a replacement necessary — and that is where correct selection decides whether the job is a one-day swap or a two-week headache.

2. Data to Collect Before You Order

3. Motor Only vs Complete Swing Drive Assembly

Excavator manufacturers package the swing drive in different ways, and this is the first fork in the road when selecting a replacement:

• Motor-only machines: the swing motor bolts directly onto a separate reduction gearbox. If only the motor has failed, replacing the motor is enough.
• Integrated swing drive (common on many compact and mid-size machines): motor and planetary reduction share one housing. Wear in either section means a complete assembly replacement is the practical choice.

When in doubt, tell your supplier whether your unit has a separate gearbox or is one integrated housing — they will guide you to the correct assembly type.

4. Brake & Valve Configuration: The Detail Most Buyers Miss

Two motors that look identical on the outside can behave completely differently because of their internal controls:

• Brake type — spring-applied, hydraulic-release parking brakes are standard on most swing motors, but the release pressure and porting differ between brands. A motor with the wrong brake spec will not hold the superstructure on a slope.
• Relief and anti-cavitation valves — some swing motors carry integrated relief and make-up valves set to the machine's swing-circuit pressure. Installing a motor with the wrong relief setting causes weak swing or circuit shock.

This is why ordering by part number matters more than ordering by "a swing motor for a PC210." The correct part number encodes the brake and valve configuration that belongs on your machine.

5. Compatibility: Which Motor Fits Which Machine

Swing motors are machine-specific in mounting, porting and control — there is no universal "one size fits all" swing motor. Compatibility is established by matching the OEM part number family. As a reference:

6. Signs Your Swing Motor Needs Replacing

7. Installation Notes

1. Confirm the motor plate number and machine serial before removal.
2. Support the motor with a proper hoist; never let it hang from hoses.
3. Clean the mounting face and inspect the splined coupling for wear.
4. Torque mounting bolts to spec in a criss-cross pattern.
5. Prime the motor with clean oil before first run to protect the piston group.
6. Cycle the swing slowly at idle, then under load, checking for leaks and smooth stops.

8. Choosing a Verified Supplier

A swing motor replacement is only as good as the supplier behind it. Ask the same questions you would for any main pump: per-unit test report, correct brake/valve configuration confirmed against your part number, export packing, and a written warranty. RITO HYDRAULIC supplies complete swing motors and swing drive assemblies for excavators worldwide — each unit individually tested, with OEM-parameter fit, warranty and export packing. RITO HYDRAULIC confirms the correct match against your machine model and part number before shipment.

9. FAQ

Q1: What is the difference between a swing motor and a swing gearbox?

The swing motor converts oil pressure into rotation; the swing gearbox multiplies that rotation's torque to turn the slew ring. Some machines integrate both into one assembly, others keep them separate.

Q2: How do I know which swing motor fits my excavator?

Read the part number on your old motor's plate and match it. Send your supplier the machine model, serial number and that plate number — they confirm the brake, valve and mounting configuration.

Q3: Can I replace just the swing motor, or do I need the whole drive?

If your machine has a separate gearbox and only the motor is worn, motor-only is fine. If the unit is an integrated swing drive, replace the complete assembly. Your supplier can advise from your machine details.

Q4: Why does my excavator swing weakly but the pump seems fine?

Internal leakage in the swing motor (worn piston group) is the most common cause — the pump delivers pressure, but the motor bypasses oil internally. A pressure test at the motor port confirms it.

Q5: Where can I buy a tested swing motor assembly?

RITO HYDRAULIC supplies complete swing motors and swing drive assemblies with per-unit test reports, OEM-parameter fit and export packing. Send your machine model, serial and motor plate number for a same-day quote.

10. Get Your Swing Motor Quote

Choosing the right swing motor comes down to matching your machine's part number — and working with a supplier who confirms brake and valve configuration, not just bolt holes. RITO HYDRAULIC makes that easy: send your machine model, serial number and the plate number from your old motor, and our team confirms the correct assembly, stock and lead time the same day.
