CAT 390F A8VO280 Main Pump: Displacement, Hydraulics & Replacement Guide for Mining Operations (2026)

Quick Answer

Key Takeaways

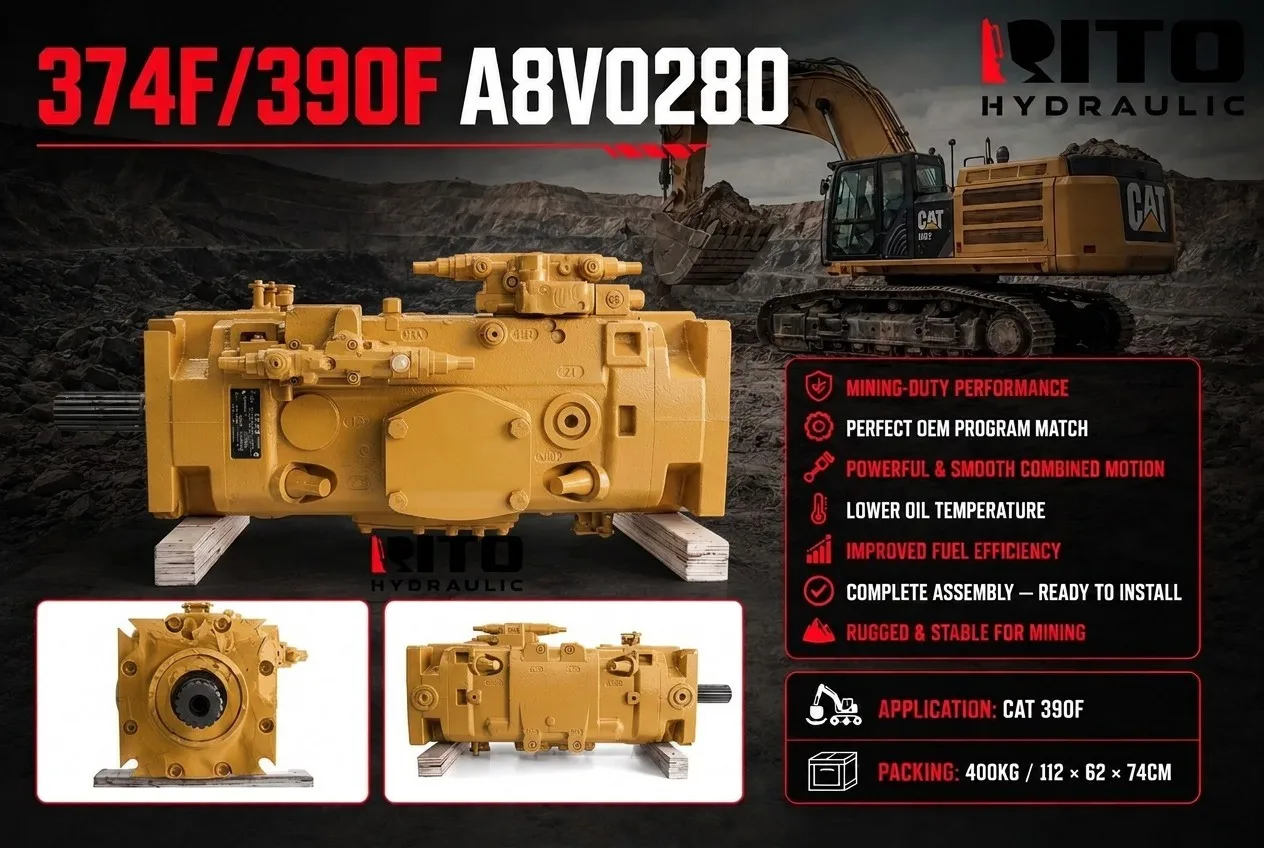

• The 390F main pump is a Rexroth-series A8VO280 (280 cm³/rev) axial piston pump - RITO product code 374F/390F A8V0280.
• It is supplied as a complete, ready-to-install assembly - no in-frame overhaul, no parts chasing, direct bolt-on.
• The 390F: 90-ton-class mining excavator, Cat C18 ACERT engine, approx. 405 kW (534 hp) - a high-flow, high-pressure hydraulic system.
• Seven performance signatures: mining-duty performance, OEM program match, powerful & smooth combined motion, lower oil temperature, improved fuel efficiency, ready-to-install, rugged for mining.
• Packing: 400 kg / 112 x 62 x 74 cm - a complete assembly is a heavy shipment; plan sea freight consolidation.
• Displacement matters: never substitute an A8VO200 or A8VO107 for the A8VO280 without checking the machine's flow demand.

Table of Contents

1. The CAT 390F: A 90-Ton Mining Platform
2. A8VO280 Pump Data Sheet
3. Displacement Class: A8VO280 vs A8VO200 vs A8VO107
4. How the 390F Hydraulic Circuit Uses the A8VO280
5. Seven Performance Signatures of the RITO A8VO280
6. Complete Assembly vs In-Frame Overhaul: The Cost Decision
7. Failure Forensics: Reading the First Signs
8. Installation & Commissioning Checklist
9. Fleet Economics: Replacement Timing & Freight Planning
10. FAQ - CAT 390F A8VO280 Pump
11. Closing: Put the 390F Back to Work

1. The CAT 390F: A 90-Ton Mining Platform

The Caterpillar 390F is one of the largest excavators in the F-series line - a 90-ton-class machine built for open-pit mining, quarry loading and heavy mass excavation. It is powered by a Cat C18 ACERT engine delivering approximately 405 kW (534 hp), and its hydraulic system demands high flow at high pressure to keep the 7+ m digging depth and large bucket productive hour after hour.

2. A8VO280 Pump Data Sheet

3. Displacement Class: A8VO280 vs A8VO200 vs A8VO107

All A8VO pumps share the same Rexroth axial-piston architecture, but displacement sets the flow the machine receives. Matching displacement to the machine's hydraulic demand is non-negotiable - an undersized pump starves the circuit (slow cycles, weak breakout), while an oversized pump can overload the engine and raise oil temperature.

4. How the 390F Hydraulic Circuit Uses the A8VO280

The A8VO280 converts engine torque into hydraulic flow and pressure for every major circuit on the 390F: boom, arm, bucket, swing and travel. In a machine this size, the pump runs at high flow rates under sustained load, which is exactly why displacement and internal precision matter:

• High-flow delivery - the 280 cm³/rev displacement feeds the large cylinders fast enough for productive cycle times at depth.
• Pressure-flow matching - the pump control responds to pilot demand so boom-up and swing can run simultaneously without power waste (powerful & smooth combined motion).
• Heat management - lower internal leakage means lower oil temperature, which extends seal and fluid life in long mining shifts.
• Fuel economy - an efficient pump draws less engine power for the same work, improving liters-per-hour fuel consumption on the 390F's C18.

5. Seven Performance Signatures of the RITO A8VO280

6. Complete Assembly vs In-Frame Overhaul: The Cost Decision

When a 390F main pump fails, owners face two routes. Rebuilding the old pump in-frame means sourcing internal parts, waiting on machining, and risking hidden wear in components you did not replace. A complete assembly swap replaces the entire unit in one step - the downtime is measured in days, not weeks.

7. Failure Forensics: Reading the First Signs

Catch the 390F main pump early and a swap is routine. Miss the signs and the failure can take out the drive coupling, suction lines and even contaminate the whole hydraulic system. Watch for these leading indicators:

• Cycle time creep - boom or bucket cycles getting slower at the same engine rpm.
• Oil temperature climbing - internal leakage converting flow to heat, especially mid-shift.
• Fuel consumption up - the engine working harder to push the same flow.
• Pump whine or knock - cavitation, worn bearings or loose coupling at the input end.
• Pressure drop at the gauge - relief valve OK but system pressure sagging under load.
• Visible leaks - shaft seal or cover leaks that leave oil on the housing.

8. Installation & Commissioning Checklist

1. Confirm the machine model (390F / 390F L / 374F) and the part number on the old pump before removal.
2. Clean the mounting face and inspect the drive coupling splines for wear.
3. Bolt the complete assembly into place; torque fasteners to spec.
4. Check suction line condition and replace the suction strainer if contaminated.
5. Fill with the correct hydraulic oil grade and bleed the pump inlet before start-up.
6. Run at idle first, check for leaks, then cycle boom, arm and swing to purge air.
7. Verify system pressure against the machine's specification before returning to production.

9. Fleet Economics: Replacement Timing & Freight Planning

From RITO HYDRAULIC's export experience, the 390F A8VO280 is usually replaced as a complete assembly rather than rebuilt - the machine's downtime cost in a mine dwarfs the price difference between a rebuild kit and a complete unit. Four factors decide the timing and the total cost:

• Trigger point - replace at the first confirmed internal failure signs, not after the pump seizes.
• Quality tier - OEM-program-match complete assemblies give predictable life; verify warranty terms.
• Freight - at 400 kg / 112 x 62 x 74 cm, sea freight consolidation is the economical default; air freight only for urgent stoppages.
• Lead time - confirm stock and shipping schedule with the supplier before the old pump comes off the machine.

Buyers who confirm the machine model, the old pump identification, the assembly form and the freight plan before ordering typically have the 390F back to work within days of the new unit arriving.

10. FAQ - CAT 390F A8VO280 Pump

Q1: What main pump does the CAT 390F use?

The CAT 390F uses a Rexroth-series A8VO280 axial piston pump with 280 cm³/rev displacement - supplied by RITO HYDRAULIC as product code 374F/390F A8V0280.

Q2: Does the A8VO280 also fit the 374F?

Yes. The A8V0280 is listed for both the CAT 390F and 374F - always confirm your exact machine model and old pump identification before ordering.

Q3: What does the A8VO280 displacement rating mean?

The "280" means 280 cm³ of oil delivered per revolution - the flow capacity the 90-ton class needs for fast, powerful cycles.

Q4: Complete assembly or repair kit - which should I buy?

For a mining machine, a complete ready-to-install assembly minimizes downtime and eliminates hidden-wear risk. Repair kits suit shops that can rebuild in-house and accept the longer turnaround.

Q5: What are the early signs the 390F main pump is failing?

Slower cycle times, climbing oil temperature, rising fuel consumption, pump whine or knock, system pressure sag, and shaft or cover leaks.

Q6: How heavy is the A8VO280 assembly and how is it packed?

Approximately 400 kg, packed at 112 x 62 x 74 cm - sea freight consolidation is usually the most economical option.

Q7: How long does replacement take with a complete assembly?

With the complete bolt-on unit, a trained crew typically swaps the pump and recommissions the machine within a few days - versus weeks for an in-frame overhaul.

Q8: Where can I buy a CAT 390F A8VO280 pump?

RITO HYDRAULIC supplies the 390F A8VO280 complete assembly with OEM program match, warranty and export packing. Send your machine model and old pump identification for a quote.

11. Closing: Put the 390F Back to Work

The CAT 390F A8VO280 (374F/390F A8V0280) is a complete, ready-to-install main pump assembly for the 90-ton mining class - OEM program match, powerful and smooth combined motion, lower oil temperature, improved fuel efficiency and rugged mining-duty construction. Confirm your machine model and old pump identification, and the new unit ships with warranty and export packing. Send your enquiry to our team now.
