JS200 or JS210 hydraulic system losing pressure or pump case drain overheating? A worn JS200 K3V112 main pump allows rotating group bypass to accumulate until all circuits lose simultaneous work capacity. RITO supplies this precision K3V112 main pump assembly to restore full JCB JS200-series hydraulic system flow and pressure.
Item NO.:
Excavator Main PumpOrder(MOQ):
1pcsPayment:
T/T, WESTERN UNION, CHINESE BANK,PAYPALProduct Origin:
JAPANShipping Port:
Huangpu,GuangzhouLead Time：

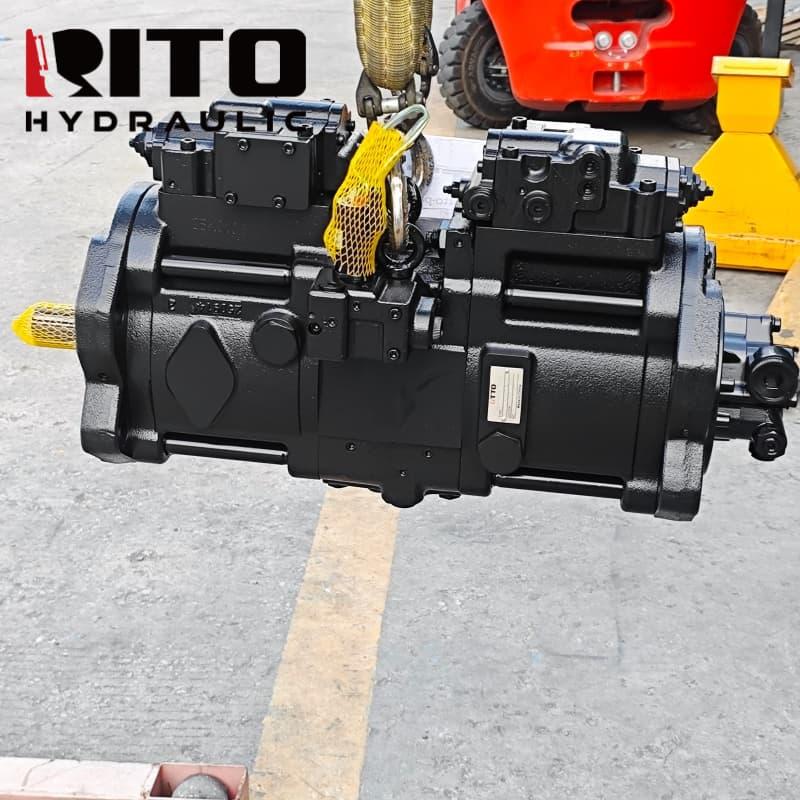

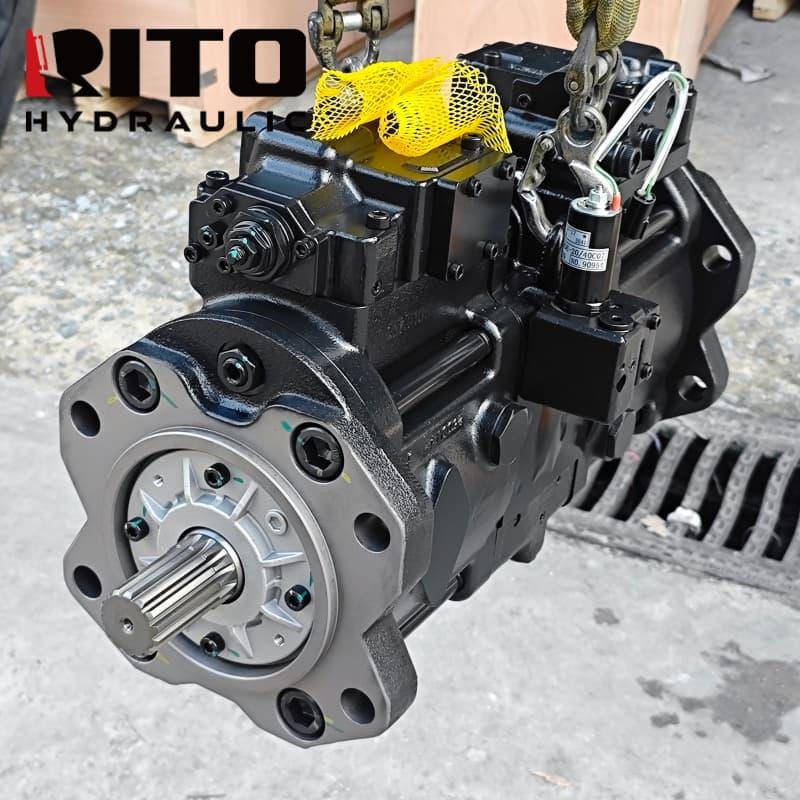

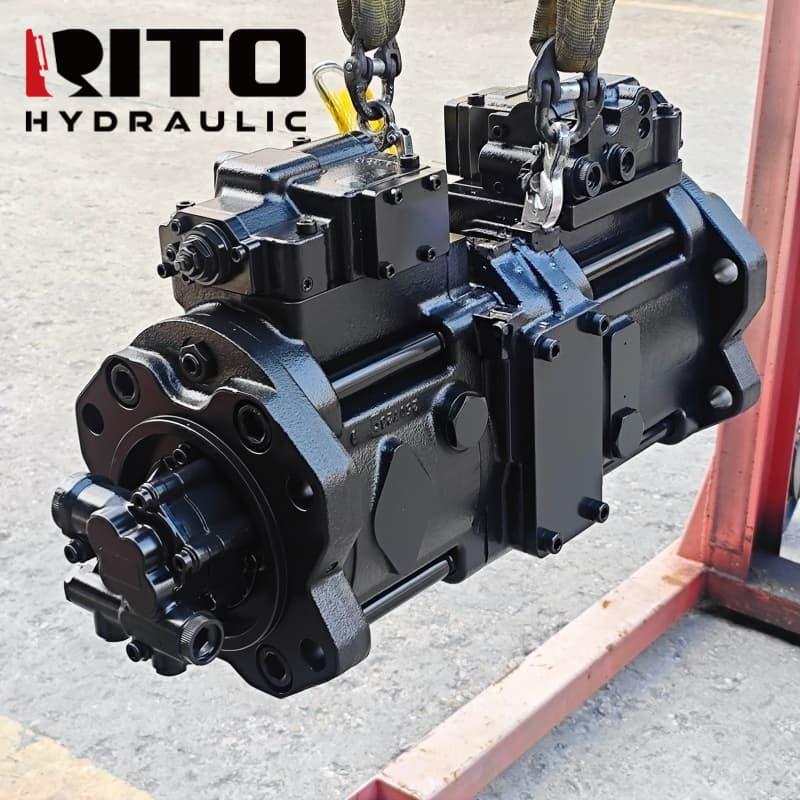

In StockJS200-YYBZC Hydraulic Main Pump (K3V112 series) for JCB JS200, JS200LC, JS210 and JS220 excavators. K3V112 variable axial piston pump with factory-calibrated regulator for JCB JS200-series engine and LS circuit specification. New rotating group and matched valve plate restore rated displacement and fast pressure response from first operation.
| Part Number | JS200-YYBZC |
|---|---|
| Part Name | Hydraulic Main Pump Assembly (K3V112) |
| Compatible Brand | JCB |
| Applicable Models | JS200, JS200LC, JS210, JS220 Excavator |
| Application | K3V112 main variable axial piston pump for JCB JS200-series hydraulic system |
| Material | Precision alloy steel rotating group and pump housing |
| Product Color | Industrial finish |
| Working Temperature | -25°C~+60°C |
| Key Function | Generates main hydraulic system flow and pressure for JCB JS200-series all-function operation |
| Condition | 100% New Aftermarket OEM Quality |
| Packaging | Wooden Case Reinforced Carton Neutral Packing Customized Box |
Regulator spring and spool pre-set to JCB JS200-series engine torque curve, preventing engine overload during full-power simultaneous boom and swing operation.
New cylinder block, pistons, piston shoes and valve plate restore K3V112 OEM volumetric efficiency, reducing fuel consumption and cycle time back to JS200 factory specification.
Pump regulator variant selected for JCB JS200 LS circuit pressure differential and flow-sharing specification, preventing the standby pressure hunting that occurs with generic K3V112 pumps.
Single pump covers JS200, JS200LC, JS210 and JS220 with the K3V112 specification common to this JCB series.
FAQ
Q: How do I confirm the JS200 K3V112 pump is the source of system flow loss?
A: Test both section case-drain flows at rated engine speed. Both above OEM spec simultaneously confirms rotating group wear. Isolated high drain from one section may indicate a valve or relief circuit fault rather than the pump.
Q: What should I flush before fitting the new JS200 K3V112 pump?
A: Drain the hydraulic tank, clean the interior, replace all filter elements including the suction strainer, refill with fresh hydraulic oil, and run at low pressure for 30 minutes before applying full load.
Q: Does the JS200-YYBZC pump include the coupling and drive plate?
A: The pump assembly is the pump only. Inspect the existing coupling for wear before reuse; replace if it shows imbalance or wear to protect the new pump bearings.
Q: How to confirm this pump fits my JS200?
A: Confirm machine model is JS200, JS200LC, JS210 or JS220 and that the existing main pump is K3V112 series. Provide machine serial number for cross-reference.
Q: What quality options are available?
A: We provide original, OEM and high-quality aftermarket versions with stable supply capability.
Q:Why Choose RITO?
A:Listed Factory
Stable&Reliable Quality
OEM Factory for Chinese Top Excavator Brands
Supplier to Fortune 500 Companies
