Joystick on your R210-7 or R220-7 stiff, notchy or returning imprecisely to neutral? A worn YN03M02122F1 pilot handle loses cam-surface precision, generating dead zones in boom and arm arcs that fatigue operators during fine positioning work. RITO supplies this Kawasaki-pattern pilot handle to restore feather-smooth proportional control on your Hyundai excavator.
Item NO.:
YN03M02122F1Order(MOQ):
1pcsPayment:
T/T, WESTERN UNION, CHINESE BANK,PAYPALProduct Origin:
JAPANShipping Port:
Huangpu,GuangzhouLead Time：

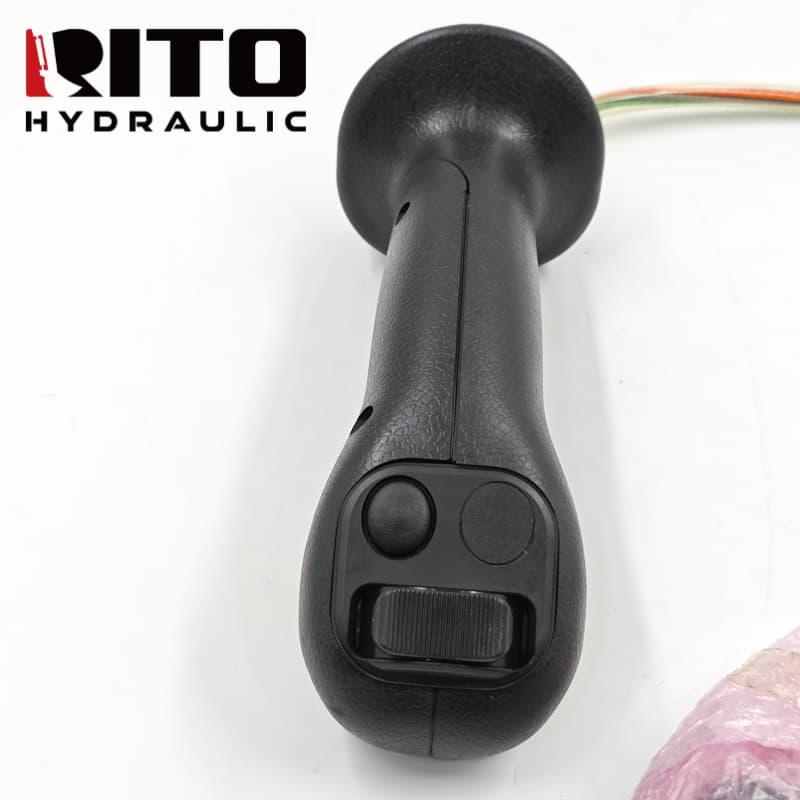

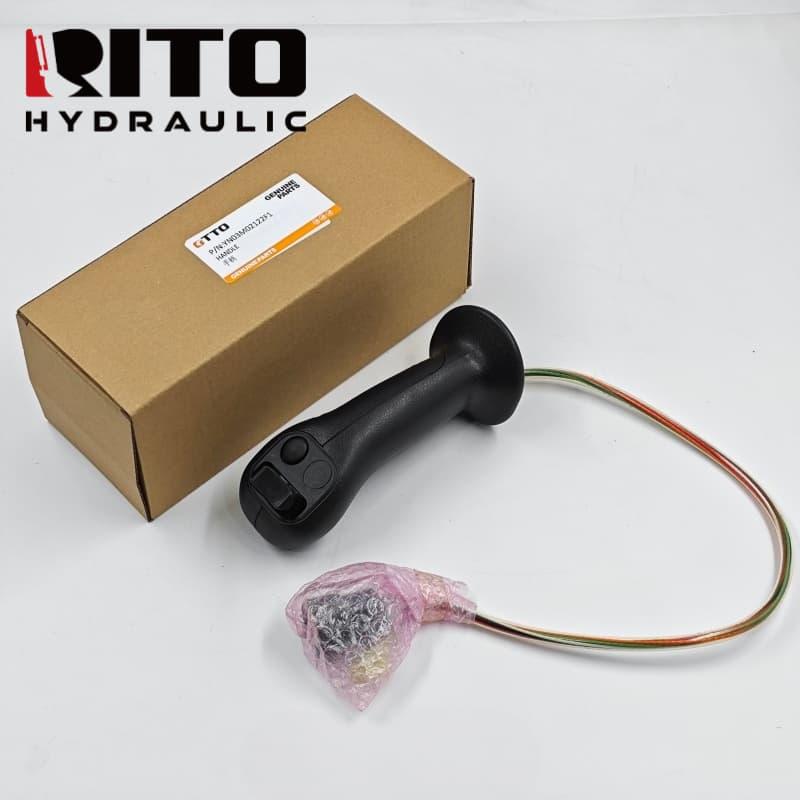

In StockYN03M02122F1 Pilot Control Handle (Single Joystick) for Kawasaki-pattern pilot systems on Hyundai R210-7, R220-7, R215-7 and R225-7 excavators. Precision cam-and-spool mechanism converts handle deflection into a proportional pilot pressure signal that governs the main control valve. Sealed cam housing, matched return springs and micro-clearance spool bore deliver consistent, linear pilot pressure across the full handle travel arc.
| Part Number | YN03M02122F1 |
|---|---|
| Part Name | Pilot Control Handle (Single Joystick) |
| Compatible Brand | Kawasaki Pattern (Hyundai) |
| Applicable Models | R210-7, R220-7, R215-7, R225-7 Excavator |
| Application | Pilot pressure modulation joystick for Kawasaki-pattern control system on Hyundai R210-7 / R220-7 |
| Material | Precision alloy steel spool, sealed cam mechanism |
| Product Color | Industrial black |
| Working Temperature | -25°C~+80°C |
| Key Function | Delivers proportional pilot pressure for boom, arm, swing or bucket control on R210-7 / R220-7 |
| Condition | 100% New Aftermarket OEM Quality |
| Packaging | Wooden Case Reinforced Carton Neutral Packing Customized Box |
Cam geometry produces a linear pressure increase across the full handle arc, giving operators the same proportional feel at all handle positions from feather touch to full deflection.
Sealed internal cam mechanism blocks pilot oil particulate ingress that causes cam notching and the stiff, sticky joystick feel that develops on high-hour Hyundai excavators.
Pre-loaded return springs ensure the handle returns precisely to zero pilot pressure at neutral, preventing actuator creep when the operator releases the joystick between work cycles.
Single part number covers R210-7, R220-7, R215-7 and R225-7 Kawasaki-pattern pilot systems, simplifying procurement for Hyundai mid-size fleet maintenance.
FAQ
Q: What symptoms indicate the YN03M02122F1 joystick needs replacing on R220-7?
A: One function is noticeably slower than the others at the same handle deflection, the joystick has a stiff spot or dead zone in a specific direction, the handle does not self-centre cleanly, or pilot pressure reads lower on one function than the others.
Q: Can I rebuild YN03M02122F1 with a seal kit?
A: Seal kits address minor external leakage. Worn cam surfaces cannot be restored by seals; if pilot pressure modulation is non-linear or dead zones persist after sealing, replace the full handle assembly.
Q: Does YN03M02122F1 fit both left and right joystick positions on R210-7?
A: Confirm which axis (boom-arm or swing-bucket) requires replacement by testing pilot pressure on each handle separately. Provide the machine serial number to our team to confirm left-right application for your specific R210-7 configuration.
Q: How to confirm YN03M02122F1 fits my R220-7?
A: Match existing handle part number YN03M02122F1. Provide machine model and serial number to our team for cross-reference confirmation.
Q: What quality options are available?
A: We provide original, OEM and high-quality aftermarket versions with stable supply capability.
