Controls stiff, imprecise or non-responsive on your Hitachi excavator? A sticking or leaking YB60000029 pilot valve fails to modulate control pressure accurately, causing jerky actuator response that fatigues operators and reduces work quality. RITO's precision pilot valve restores smooth, proportional joystick control.
Item NO.:
YB60000029-OTOrder(MOQ):
1pcsPayment:
T/T, WESTERN UNION, CHINESE BANK,PAYPALProduct Origin:
JAPANShipping Port:
Huangpu,GuangzhouLead Time：

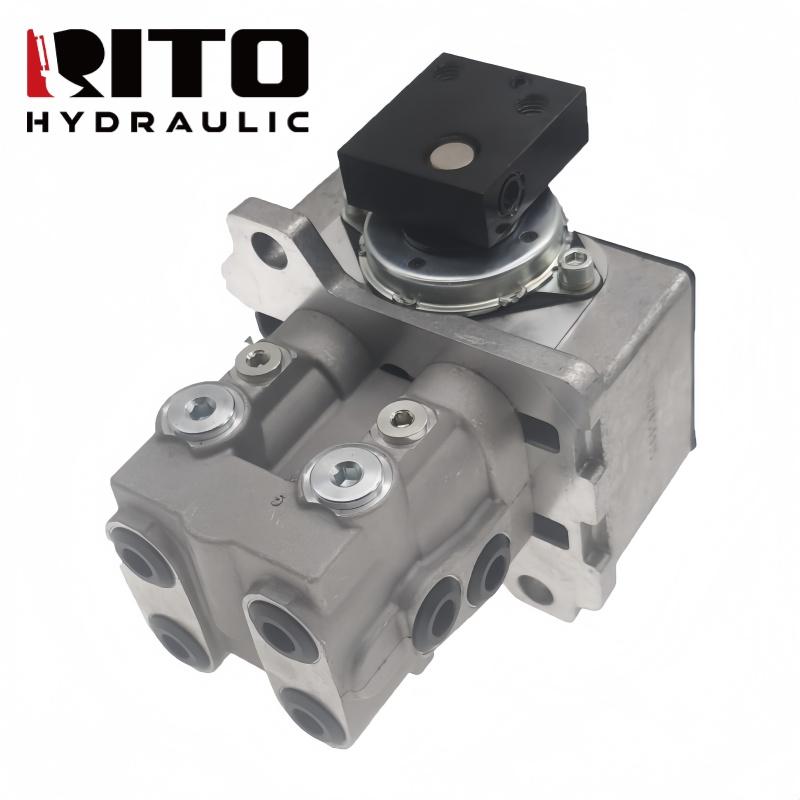

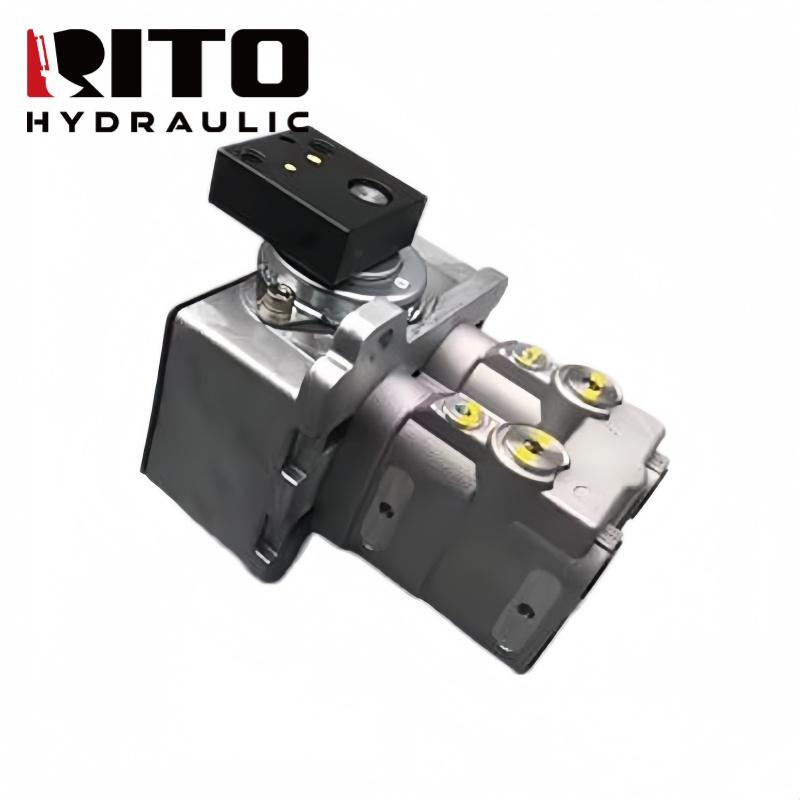

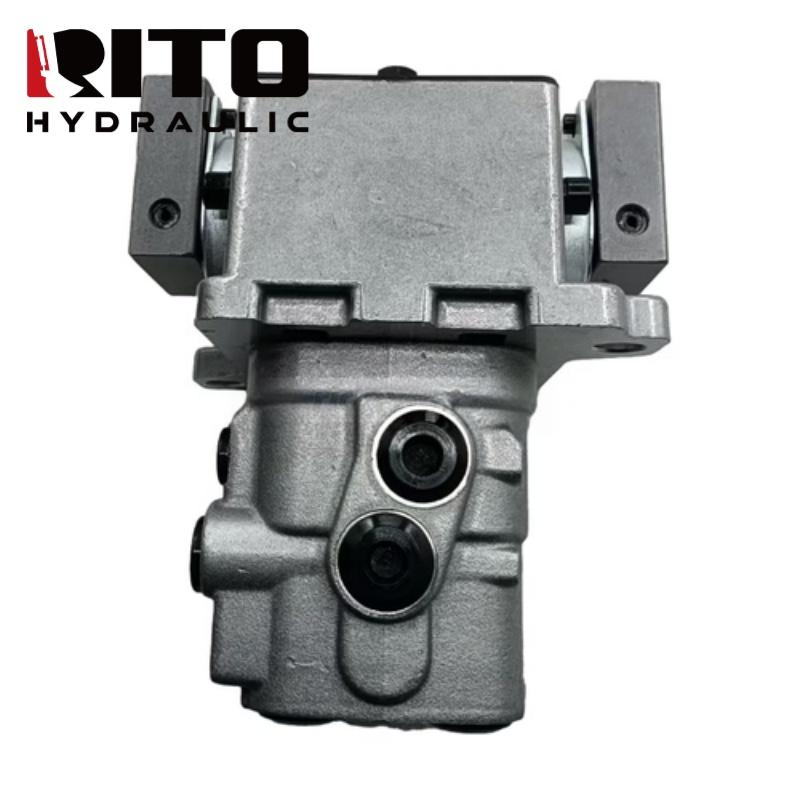

In StockYB60000029 Pilot Valve for Hitachi excavator hydraulic control system. The pilot valve converts joystick mechanical input into a precisely regulated low-pressure signal that commands the main control valve. Precision-lapped spool-and-sleeve bore, calibrated return springs and contamination-resistant port orifices ensure repeatable, feather-smooth control response.
| Part Number | YB60000029 |
|---|---|
| Part Name | Hydraulic Pilot Valve |
| Compatible Brand | Hitachi |
| Applicable Models | Hitachi Excavator Hydraulic Control System |
| Application | Converts joystick input into regulated pilot pressure signals for main control valve |
| Material | Precision-machined alloy steel spool and sleeve |
| Product Color | Metallic silver |
| Working Temperature | -25°C~+60°C |
| Key Function | Modulates pilot circuit pressure to provide proportional, operator-sensitive control response |
| Condition | 100% New Aftermarket OEM Quality |
| Packaging | Wooden Case Reinforced Carton Neutral Packing Customized Box |
Spool and sleeve bores lapped to micron clearance for smooth, stick-free travel and linear pressure output across the full joystick stroke.
Springs individually load-tested and matched to specified pre-load to ensure the spool centres reliably at rest, preventing actuator drift when controls are released.
Controlled spool clearance and filtered inlet port reduce the risk of silt lock from the pilot hydraulic oil, extending service life between overhauls.
Wide modulation band gives operators fine control resolution for precise grading, lifting and trenching operations requiring smooth starts and stops.
FAQ
Q: What are the symptoms of a failing YB60000029 pilot valve?
A: Joystick feels stiff or has dead zones, boom or arm movement surges then stops instead of moving smoothly, controls do not return to neutral freely, or one function is slow while others are normal - all indicate pilot valve wear or sticking.
Q: Can I clean and reuse a worn YB60000029 pilot valve?
A: Cleaning can resolve contamination-related sticking temporarily, but worn spool clearances cannot be restored by cleaning. If precision lapping dimension is exceeded, replace the valve to ensure consistent pilot pressure modulation.
Q: Does the YB60000029 require pilot oil filter replacement at the same time?
A: Yes. Replace the pilot circuit filter and drain the pilot accumulator before fitting the new valve, as debris from the failed valve may contaminate the new unit within hours if the system is not flushed.
Q: How to confirm YB60000029 is the correct pilot valve for my Hitachi?
A: Match the existing part number YB60000029 stamped on the old valve body, or provide the machine model and serial number to our technical team for cross-reference.
Q: What quality options are available?
A: We provide original, OEM and high-quality aftermarket versions with stable supply capability.
