Swing speed slow, noisy or inconsistent on your SK200-8? A worn SK200-8 swing gearbox loses reduction ratio accuracy, making precise cab positioning difficult and putting shock loads on the swing motor. RITO's hydraulic swing gearbox assembly restores full torque reduction and smooth slewing on your SK200-8.
Item NO.:
SK200-8-HZYX-OTOrder(MOQ):
1pcsPayment:
T/T, WESTERN UNION, CHINESE BANK,PAYPALProduct Origin:
JAPANShipping Port:
Huangpu,GuangzhouLead Time：
In StockSK200-8 Hydraulic Swing Gearbox for Kobelco SK200-8 excavator. The swing gearbox is a multi-stage planetary reducer between the hydraulic motor and the swing pinion; its condition determines swing precision, cycle time and motor service life. RITO assembles this gearbox with heat-treated planetary gears, a precision-bored carrier and a matched ring gear for zero-backlash output from day one.
| Part Number | SK200-8 (HZYX) |
|---|---|
| Part Name | Hydraulic Swing Gearbox |
| Compatible Brand | Kobelco |
| Applicable Models | SK200-8 Excavator |
| Application | Multi-stage planetary swing reduction between hydraulic swing motor and slew pinion |
| Material | Alloy steel ring gear, planet gears and sun gear; forged carrier |
| Product Color | Industrial grey |
| Working Temperature | -30°C~+80°C |
| Key Function | Reduces swing motor speed and multiplies torque to drive the slew ring at working swing speed |
| Condition | 100% New Aftermarket OEM Quality |

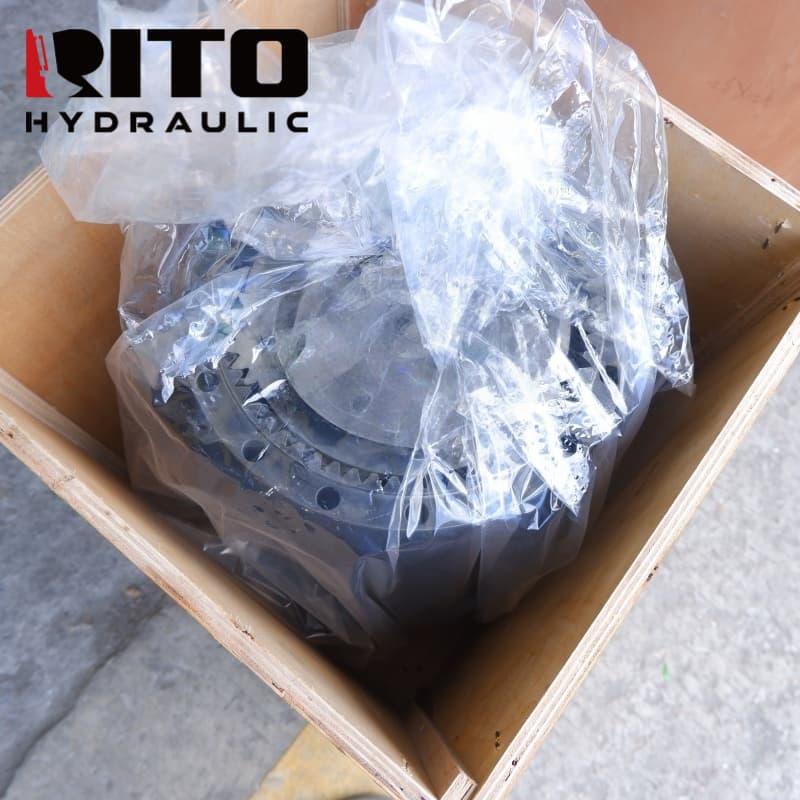

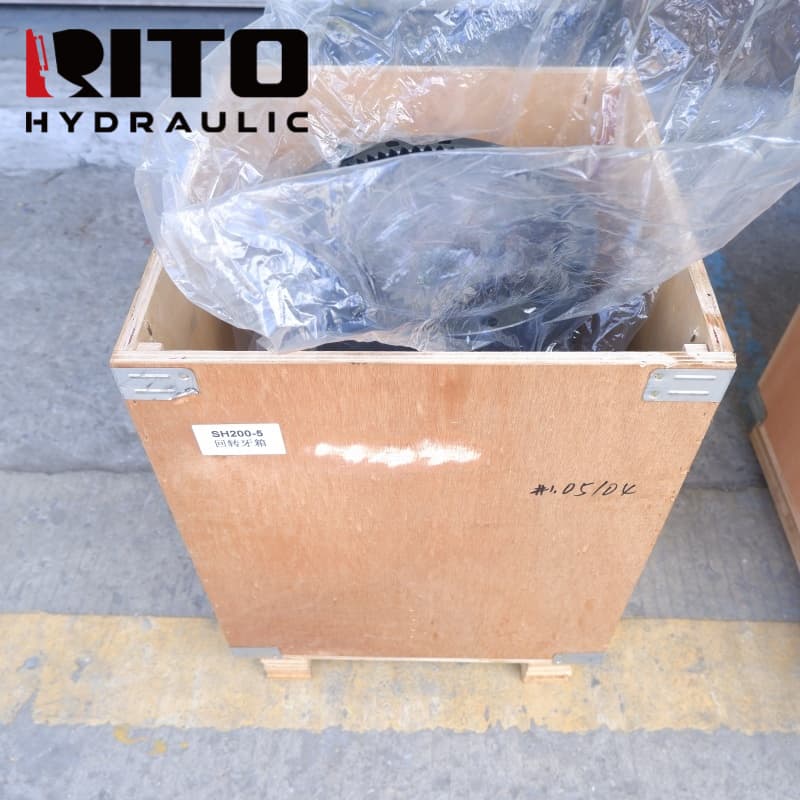

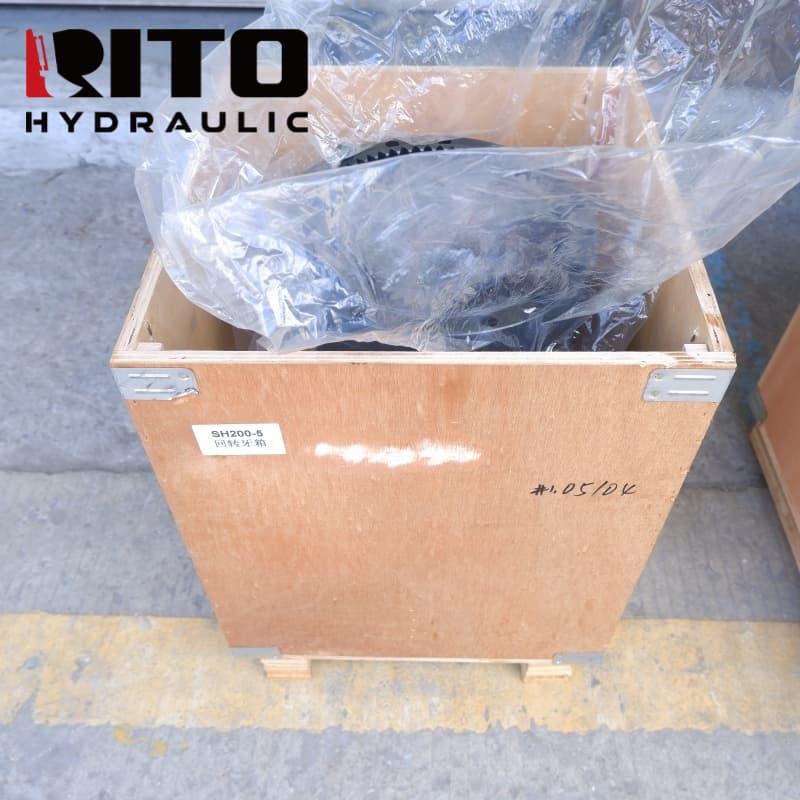

| Packaging | Wooden Case Reinforced Carton Neutral Packing Customized Box |

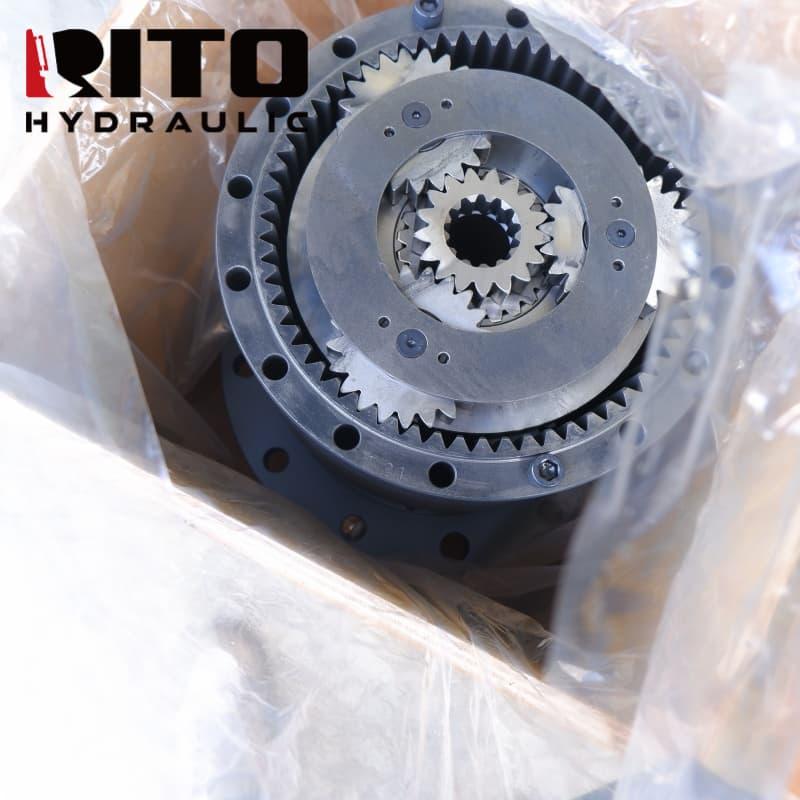

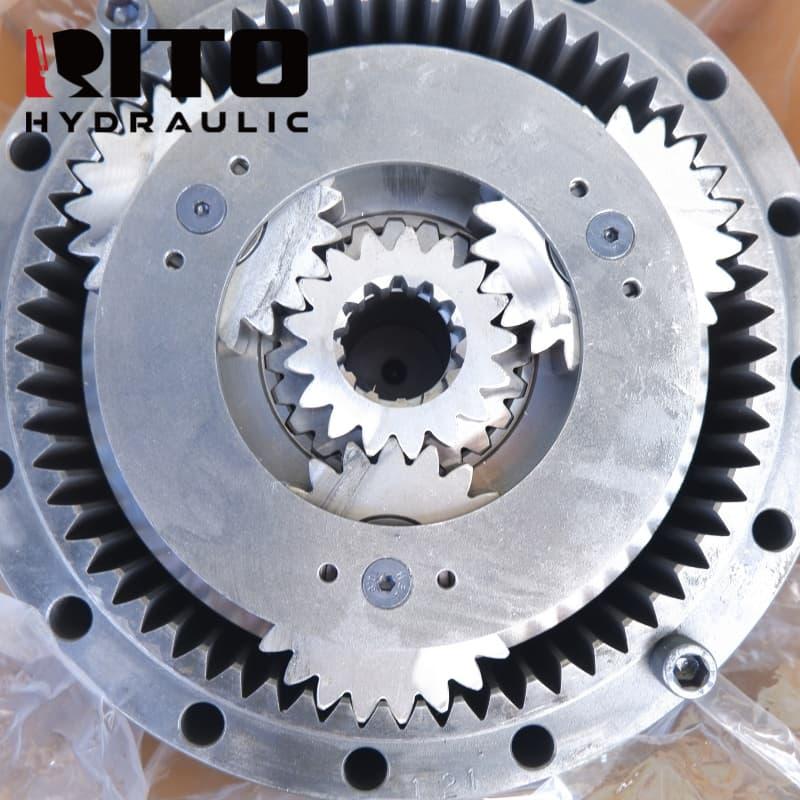

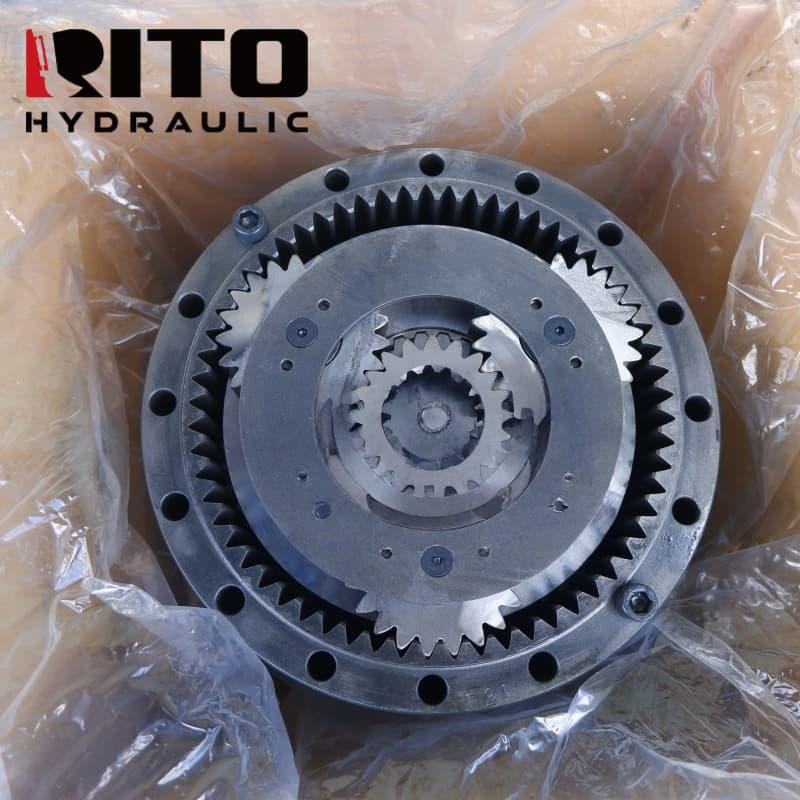

Two or three-stage planetary set delivers the high reduction ratio required to convert the high-speed low-torque swing motor output into the low-speed high-torque pinion drive.
All sun, planet and ring gears carburised and case-hardened to HRC 58-62, providing the surface hardness needed for millions of swing cycles without tooth-flank pitting.
Planet carrier and ring gear assembled with controlled backlash to OEM specification, eliminating the cab jolt at swing direction reversal that characterises worn gearboxes.
Complete assembly dimensionally matched to SK200-8 swing motor output flange and slew ring mounting bolt circle for direct bolt-on replacement.
FAQ
Q: What are the signs that the SK200-8 swing gearbox needs replacing?
A: Audible gear noise during swing, cab jolts at swing start and stop, difficulty holding a steady swing speed, metallic particles in swing gearbox oil, and oil leaking from the gearbox input or output seals.
Q: Can I replace individual gears inside the SK200-8 swing gearbox?
A: Individual gear replacement is possible but requires a gear-cutting facility to match tooth profile and hardness. For field maintenance, complete gearbox replacement is more reliable and cost-effective, particularly when multiple gear stages are worn.
Q: Does the SK200-8 swing gearbox require a specific oil type?
A: Kobelco SK200-8 swing gearbox typically uses EP 90 or EP 140 gear oil. Fill to the specified level marked on the gearbox housing and change oil at the first 50-hour interval after installation to flush any assembly debris.
Q: How to confirm this swing gearbox fits my SK200-8?
A: Verify the motor output flange bolt pattern, swing pinion shaft diameter and gearbox housing mounting bolt circle match the SK200-8 specification. Provide the machine serial number to our team for confirmation.
Q: What quality options are available?
A: We provide original, OEM and high-quality aftermarket versions with stable supply capability.
Q:Why Choose RITO?
A:Listed Factory
Stable&Reliable Quality
OEM Factory for Chinese Top Excavator Brands
Supplier to Fortune 500 Companies
