Digging force fading or engine labouring under load on your PC650-1? A worn 706-47-20002 pump cannot build the HPV132 pressure the PC650-1 control system demands. RITO supplies this main pump rebuilt to OEM specification to restore full system pressure instantly.
Item NO.:
706-47-20002Order(MOQ):
1pcsPayment:
T/T, WESTERN UNION, CHINESE BANK,PAYPALProduct Origin:
JAPANShipping Port:
Huangpu,GuangzhouLead Time：

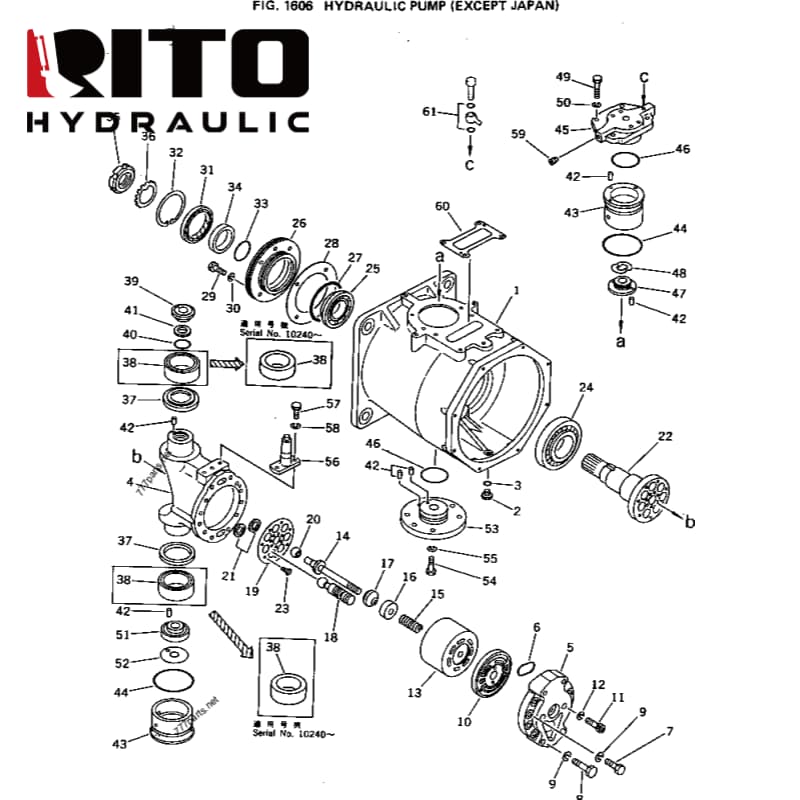

In Stock706-47-20002 Main Hydraulic Pump for PC650-1 excavator (HPV132 series). Precision regulator and matched rotating group deliver rated pressure and flow from installation.
| Part Number | 706-47-20002 / 706-47-20001 |
|---|---|
| Part Name | Excavator Hydraulic Main Pump (Piston Pump) |
| Compatible Brand | Komatsu (HPV132 Piston Pump) |
| Applicable Models | PC650-1 Excavator |
| Application | Main hydraulic pump for PC650-1 excavator all-function operation |
| Material | High-strength alloy steel |
| Product Color | Metallic industrial finish |
| Working Temperature | -25°C~+60°C |
| Key Function | Generates main hydraulic flow and pressure for PC650-1 work circuits |
| Condition | 100% New Aftermarket OEM Quality |
| Packaging | Wooden Case Reinforced Carton Neutral Packing Customized Box |
The 706-47-20002 cylinder block, pistons and piston shoes are machined to HPV132 OEM clearance, restoring volumetric efficiency and cutting the internal bypass that drives oil temperature up on the PC650-1.
Barrel face and valve plate are surface-matched to Ra 0.2 during assembly, eliminating the break-in leakage phase that reduces new-pump efficiency on the PC650-1 HPV132 circuit.
The HPV132 regulator is pre-set to the PC650-1 engine power curve, preventing engine overload during combined boom, swing and travel demand without field adjustment.
706-47-20002 port configuration, flange bolt circle and spline engagement are confirmed for the PC650-1, providing direct bolt-on installation without adaptor blocks or hose rerouting.
FAQ
Q: What symptoms indicate the 706-47-20002 pump needs replacing on a PC650-1?
A: Main circuit pressure falls below specification on a gauge test, all functions slow simultaneously at rated engine speed, HPV132 case-drain flow exceeds the OEM limit, oil temperature rises faster than normal, and metal particles appear in the hydraulic oil.
Q: Should I replace the valve plate when fitting the new 706-47-20002 pump?
A: This 706-47-20002 assembly includes a new matched valve plate and rotating group, so the sealing interface is correct from installation. No additional valve plate replacement is required.
Q: Does the 706-47-20002 pump fit other Komatsu models besides the PC650-1?
A: Cross-reference numbers 706-47-20002 / 706-47-20001 apply. The 706-47-20002 pump is dimensionally matched to the HPV132 pump application; confirm your machine serial number with our team if you are unsure of compatibility.
Q: How to confirm the 706-47-20002 is the correct pump for my PC650-1?
A: Match the pump model plate reading 706-47-20002 and confirm the machine model is PC650-1. Provide the pump and machine serial numbers to our team for exact cross-reference confirmation.
Q: What quality options are available?
A: We provide original, OEM and high-quality aftermarket versions with stable supply capability.
Q:Why Choose RITO?
A:Listed Factory
Stable&Reliable Quality
OEM Factory for Chinese Top Excavator Brands
Supplier to Fortune 500 Companies
