Q: Fault Diagnosis: What specific machinery symptoms indicate that a pilot gear pump has suffered severe internal wear?
A: Controls feeling heavy or stiff until the engine reaches maximum RPMs, jerky movement when operating multiple levers at once, and a drop in pilot line pressure measured at the diagnostic port.
A: Controls feeling heavy or stiff until the engine reaches maximum RPMs, jerky movement when operating multiple levers at once, and a drop in pilot line pressure measured at the diagnostic port.
Q: Installation Standards: What precaution is critical when mounting this replacement gear pump to the main pump body?
A: Ensure the input coupling or tang drive shaft aligns completely straight with the main pump drive tail. Forcing an unaligned gear pump into place will cause rapid bearing wear and catastrophic shaft breakage within hours.
A: Ensure the input coupling or tang drive shaft aligns completely straight with the main pump drive tail. Forcing an unaligned gear pump into place will cause rapid bearing wear and catastrophic shaft breakage within hours.

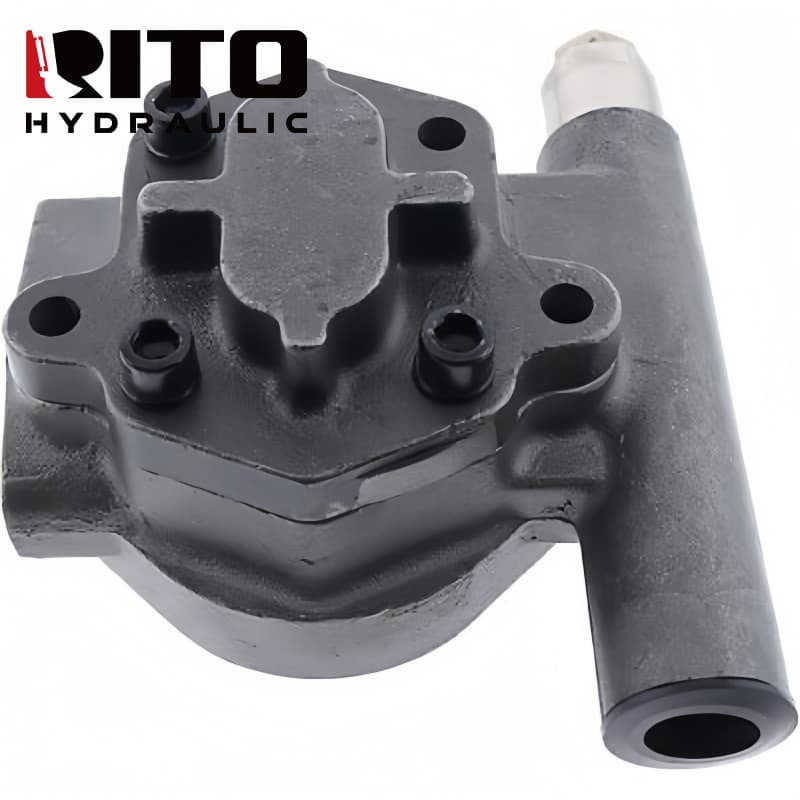

Q: Procurement Verification: Can this 704-24-24420 model match both standard tracked platforms and long undercarriage variants?
A: Yes, it serves as a universal pilot pressure provider for the listed 20-ton class excavator series, matching the factory mounting metrics across all chassis length extensions.
A: Yes, it serves as a universal pilot pressure provider for the listed 20-ton class excavator series, matching the factory mounting metrics across all chassis length extensions.
Q: Extreme Environment Performance: How does this pilot pump maintain responsive control signals during sub-zero cold weather startups?
A: The tight internal gear clearances are designed to pull and compress high-viscosity fluid quickly, avoiding pump starvation and delivering instant pilot pressure to the cabin handles right after cold weather engine starts.
A: The tight internal gear clearances are designed to pull and compress high-viscosity fluid quickly, avoiding pump starvation and delivering instant pilot pressure to the cabin handles right after cold weather engine starts.
