308D or 308E pulling to one side or final drive making grinding noise? A worn 452-6208 final drive assembly loses both motor efficiency and gearbox reduction accuracy, making equal bilateral tractive effort impossible on grades. RITO supplies this complete two-speed final drive assembly to restore full 308-series tractive force and straight-line travel.
Item NO.:
452-6208Order(MOQ):
1pcsPayment:
T/T, WESTERN UNION, CHINESE BANK,PAYPALProduct Origin:
JAPANShipping Port:
Huangpu,GuangzhouLead Time：

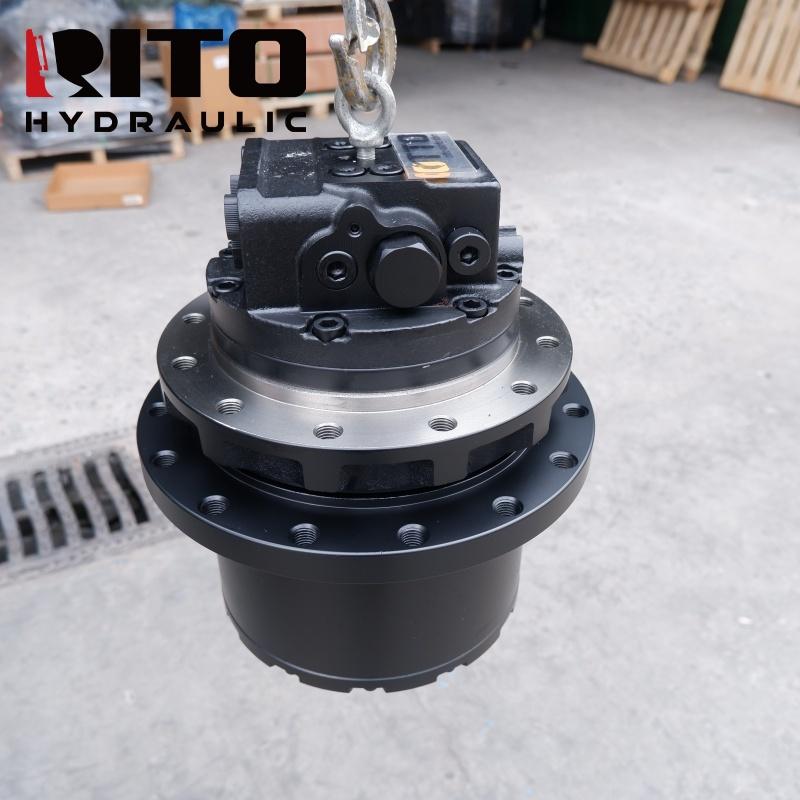

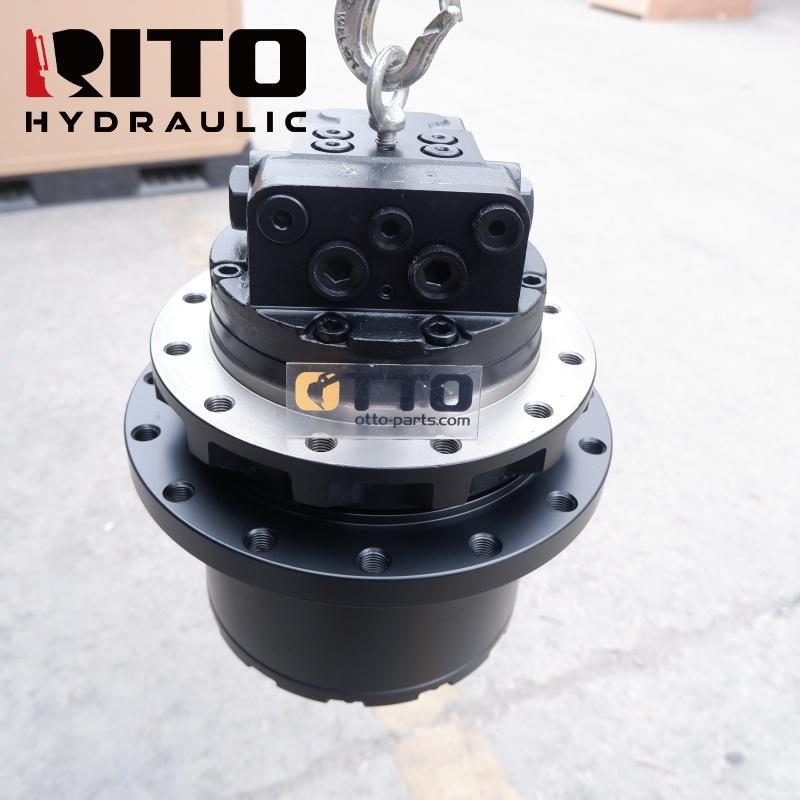

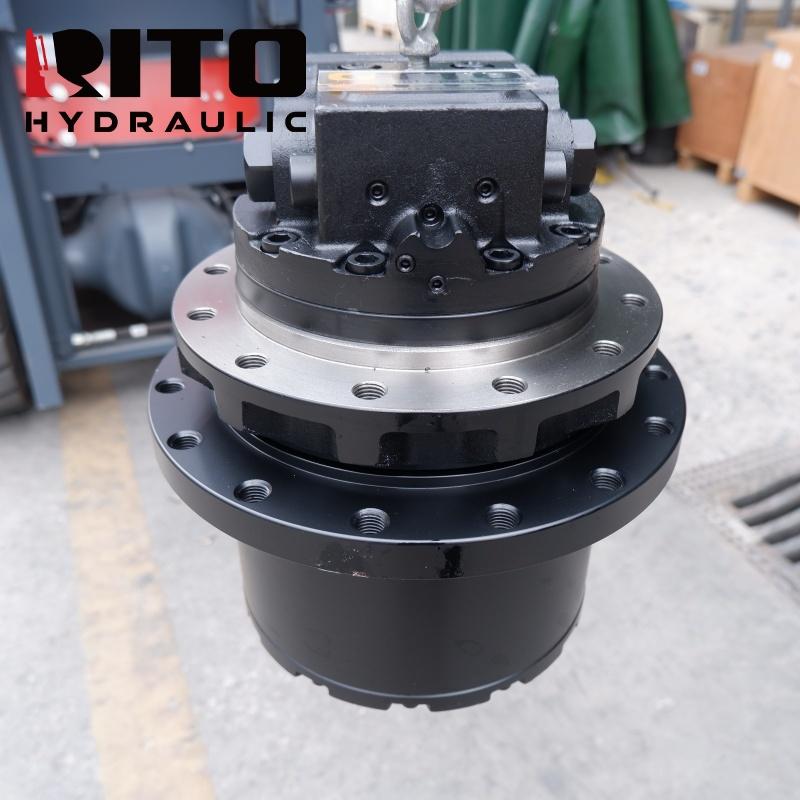

In Stock452-6208 Final Drive Assembly (Motor + Gearbox) for Caterpillar 308D, 308E, 308ECR, 308BSR and 307 excavators. Cross-reference: 4526208. Complete unit integrating the two-speed axial piston travel motor and multi-stage planetary final drive. Factory-configured two-speed motor and integral park brake tested before shipping.
| Part Number | 452-6208 / 4526208 |
|---|---|
| Part Name | Final Drive Assembly (Travel Motor + Gearbox) |
| Compatible Brand | Caterpillar |
| Applicable Models | 308D, 308E, 308ECR, 308BSR, 307 Excavator |
| Application | Complete two-speed final drive travel assembly for Cat 308-series track propulsion |
| Material | Alloy steel rotating group and gears, cast housing |
| Product Color | Industrial finish |
| Working Temperature | -30°C~+80°C |
| Key Function | Provides Cat 308-series travel drive across both working-speed and high-speed travel ranges |
| Condition | 100% New Aftermarket OEM Quality |
| Packaging | Wooden Case Reinforced Carton Neutral Packing Customized Box |
High and low displacement motor settings calibrated to Cat 308-series working-speed and high-speed travel spec, verified functional before shipping.
Supplying motor and gearbox as one assembly eliminates oil cross-contamination between motor case drain and gearbox gear oil that occurs when components are replaced individually.
Spring-applied hydraulically-released park brake tested for correct release pressure and slope-holding torque specific to Cat 308 weight before shipping.
452-6208 covers 308D, 308E, 308ECR, 308BSR and 307, addressing multiple Cat 308-series variants with one part number.
FAQ
Q: How to diagnose whether the motor or gearbox section of 452-6208 has failed?
A: Test motor case-drain flow at rated travel pressure. Above OEM spec confirms motor section wear. Normal case drain with audible gear noise and metal in gearbox oil confirms gearbox failure. The complete assembly covers both.
Q: Does the 452-6208 two-speed function need recalibration after installation?
A: Two-speed shift is hydraulically controlled by the machine travel speed selector valve. No motor calibration is required after installation. Verify the speed shift pilot circuit pressure is within spec if speed shift response is slow.
Q: What gearbox oil should I use after fitting the 452-6208 on a 308D?
A: Use EP 90 or EP 140 gear oil as specified in the Caterpillar 308D service manual. Fill to the correct level and change after the first 50-hour break-in period.
Q: How to confirm 452-6208 is correct for my Cat 308D?
A: Match existing final drive part number 452-6208 or 4526208 and confirm machine model is 308D, 308E or compatible 307/308-series. Provide machine serial number for cross-reference.
Q: What quality options are available?
A: We provide original, OEM and high-quality aftermarket versions with stable supply capability.
