RITO 296-6296 2966296 Final Drive Travel Motor Group Travel Device 320D 320D2 323D Excavator Spare Parts

Weak climbing power and planetary gear clicking on your 320D signal final drive wear. Neglecting travel motor drift slows down ditching jobs and strains your undercarriage links.

  • Item NO.:

    296-6296
  • Order(MOQ):

    1
  • Payment:

    T/T, WESTERN UNION, CHINESE BANK,PAYPAL
  • Product Origin:

    JAPAN
  • Lead Time:

    2-3 DAYS
  • Product Details

Restore smooth, reliable tracking with the heavy-duty 320D final drive assembly. Built to 296-6296 specifications, this drive group keeps your medium excavators working on tough jobsites.

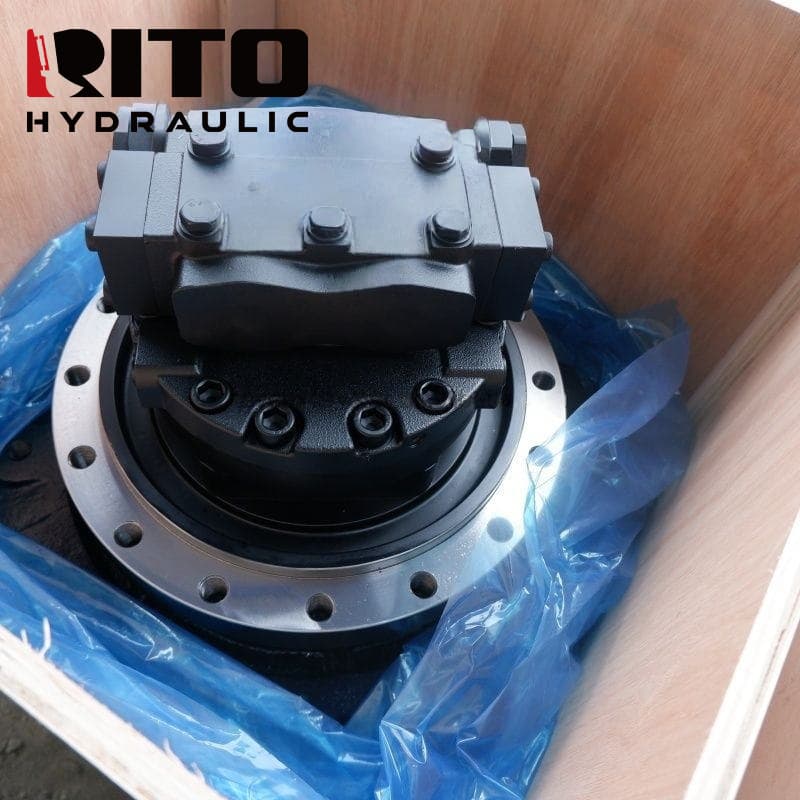

296-6296 Final Drive


Product Specifications

Part Number  296-6296 / 2966296
Part Name Crawler Travel Motor Device and Reducer Assembly
Compatible Brand CAT
Applicable Models Caterpillar 320D, 320D2, 323D Medium Earthmoving Excavators
Application Excavator hydraulic system
Material High Tensile Nodular Cast Iron and Hardened Alloy Steel
Product Color Technical Grey Frame
Working Temperature -25 to 125 degrees Celsius
Key Function 320D, 320D2, 323D Medium Earthmoving Excavators
Condition 100% New, Aftermarket / OEM Quality
Packaging Wooden Case/Reinforced Carton/Neutral Packing / Customized Box



Key Features & Advantages


Precision

Integrated Parking Brake

Engages automatically when hydraulic pilot flow drops to prevent dangerous runaway machine movement.

Leak-Free

High-Density Steel Casing

Resists heavy impact deformation when traveling through jagged rocky trenches or deep mud pits.

Direct Fitment

Precision Precision Spline Ports

Ensure zero-tolerance alignment with factory drive sprockets to eliminate premature track wear.

Rigorous Testing

Global Supply Tiering

We offer Original, OEM, and high-performance Aftermarket options to provide flexible procurement strategies for diverse regional markets.



Excavator Hydraulic Part

FAQ


Q: What does a dark, burnt smell from the final drive gear oil indicate during a routine inspection?
A: It indicates severe oil breakdown from overheating, often caused by overloaded bearings or low fluid levels.

Q: Does the 296-6296 travel group arrive pre-lubricated for immediate installation on the machine frame?
A: The motor side contains storage fluid, but the gear reduction side must be filled with gear oil before tracking.

Q: Can this travel motor group be installed on either the left or right side of a standard 320D chassis?
A: Yes, this unit features a universal port design that allows it to serve on either side by swapping hose connections.

Q: How does the multi-disc brake system inside this travel motor release when travel levers are pushed?
A: Pilot hydraulic pressure is directed into a brake cylinder, compressing the springs to release the discs instantly.

Q: What quality options are available?

A: We provide original, OEM, and high-quality aftermarket versions with stable supply capability.

Q:Why Choose RITO?

A:Listed Factory

Stable&Reliable Quality

OEM Factory for Chinese Top Excavator Brands

Supplier to Fortune 500 Companies
