Travel pedals hard to modulate or the machine lurches when you start moving? A worn 2705947 travel foot pedal valve loses pilot pressure resolution, making smooth speed control impossible on grades and in confined spaces. RITO's OEM-quality pedal valve restores precise, proportional travel speed modulation underfoot.
Item NO.:
2705947-OEMOrder(MOQ):
1pcsPayment:
T/T, WESTERN UNION, CHINESE BANK,PAYPALProduct Origin:
JAPANShipping Port:
Huangpu,GuangzhouLead Time：

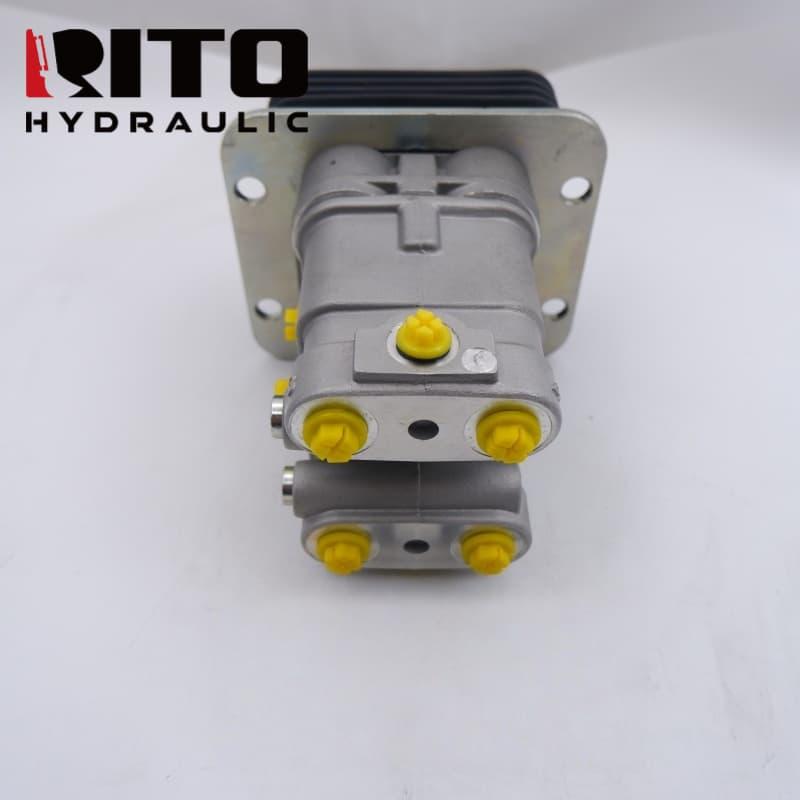

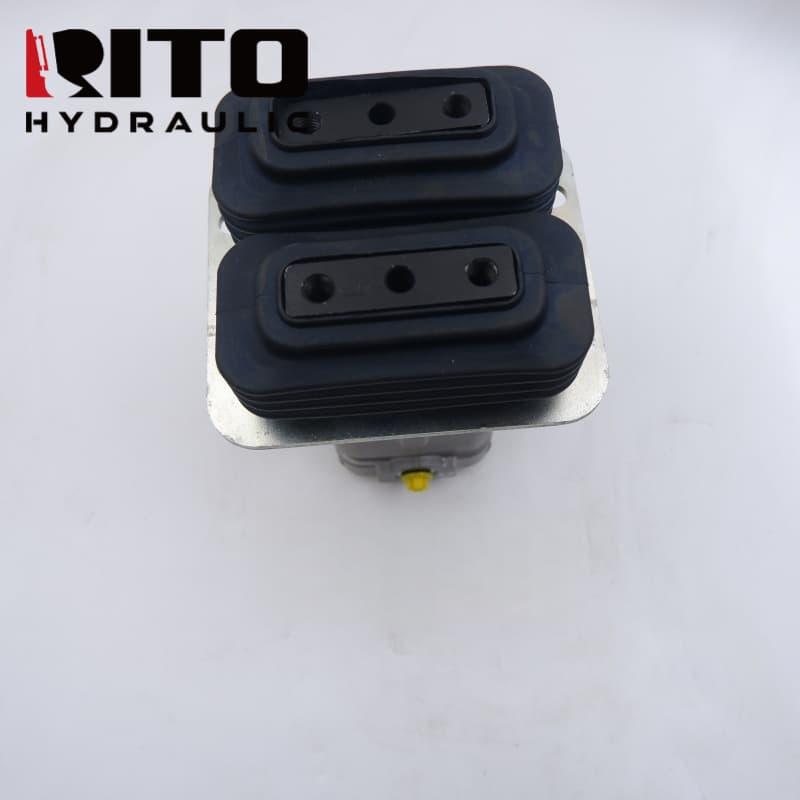

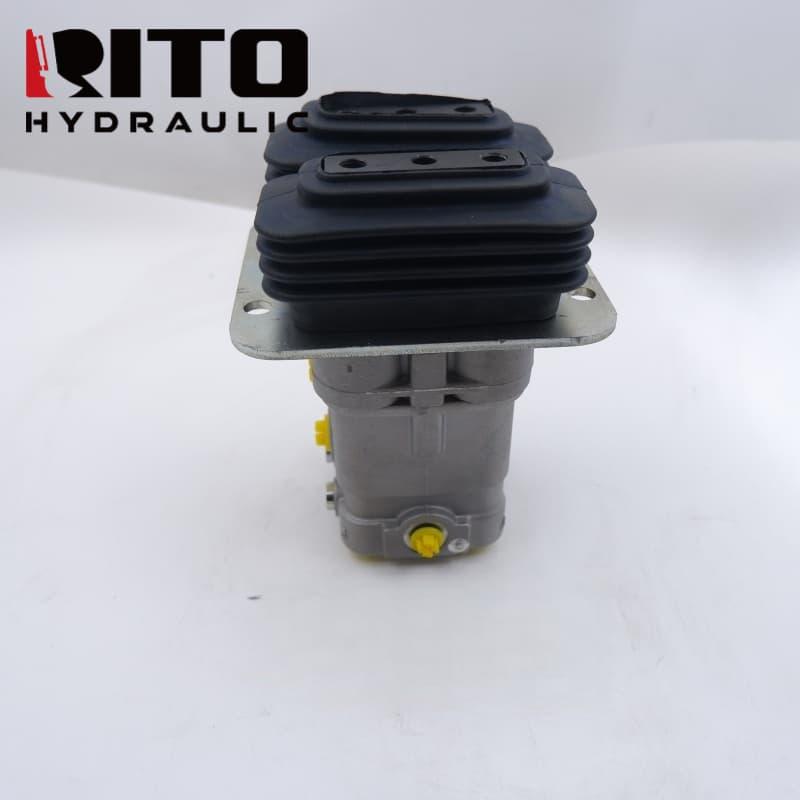

In Stock2705947 Travel Foot Pedal Valve for Caterpillar excavator travel hydraulic circuit. The pedal valve converts foot-pedal angle into a proportional pilot pressure signal that governs travel motor displacement. Precision spool stroke, calibrated pedal return springs and sealed pivot provide the linear pressure-ramp essential for controlled travel starts and stops.
| Part Number | 2705947 |
|---|---|
| Part Name | Travel Foot Pedal Valve |
| Compatible Brand | Caterpillar |
| Applicable Models | Caterpillar Excavator Travel Circuit |
| Application | Converts foot-pedal input into proportional pilot pressure for travel motor control |
| Material | Alloy steel spool and body, corrosion-resistant seals |
| Product Color | Industrial black finish |
| Working Temperature | -25°C~+80°C |
| Key Function | Provides proportional pilot signal for smooth travel speed modulation |
| Condition | 100% New Aftermarket OEM Quality |

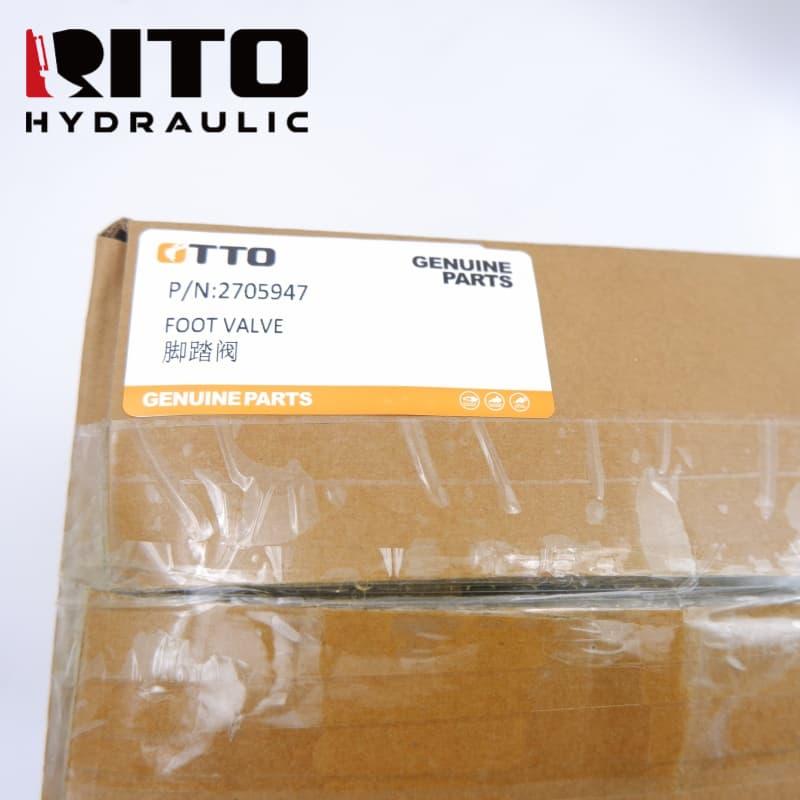

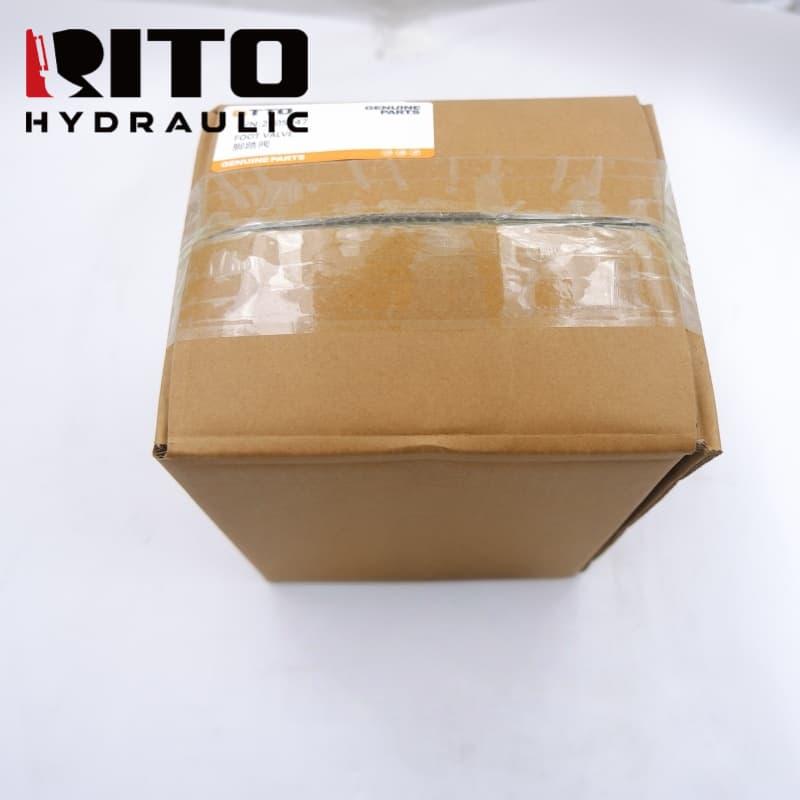

| Packaging | Wooden Case Reinforced Carton Neutral Packing Customized Box |
Precision spool geometry produces a linear pilot pressure ramp across the full pedal stroke, giving operators consistent speed sensitivity from the very first pedal movement.
Sealed pivot pin and pre-loaded return spring ensure the pedal self-centres after release, preventing the travel motor from continuing to creep when the operator lifts their foot.
Inlet filter and controlled spool clearance reduce sensitivity to pilot oil contamination that causes spool silt-lock and unresponsive travel control.
OEM mounting bolt pattern and port orientation allows direct left or right pedal replacement without adaptor brackets or hose rerouting.
FAQ
Q: What are the signs that the 2705947 pedal valve needs replacing?
A: The machine accelerates in jerks rather than smoothly, one travel pedal is stiffer than the other, the machine moves slightly when no pedal input is given (valve not fully closing), or pilot pressure gauge shows erratic signal during pedal application.
Q: Can I service the 2705947 pedal valve internally?
A: Minor contamination can sometimes be cleared by flushing. However, a worn spool bore or deformed return spring cannot be corrected by cleaning. If pilot pressure modulation remains non-linear after flushing, replace the valve.
Q: Does 2705947 cover both left and right travel pedals?
A: Confirm left/right orientation with your Cat parts manual, as some models use different part numbers for left and right. Provide the machine model and serial number for our team to confirm the correct application.
Q: How to verify 2705947 is the correct pedal valve for my Cat excavator?
A: Match the existing part number 2705947 on the old valve, or supply your machine model and serial number to our technical team.
Q: What quality options are available?
A: We provide original, OEM and high-quality aftermarket versions with stable supply capability.
