Joystick controls on your 320C feel stiff, sticky or have dead zones? A worn 206-3305 joystick pilot valve delivers inconsistent pilot pressure, causing the main valve to respond unpredictably and fatiguing operators during precision grading or lifting work. RITO's Kawasaki-pattern joystick valve restores crisp, linear control feel.
Item NO.:
206-3305-RBOrder(MOQ):
1pcsPayment:
T/T, WESTERN UNION, CHINESE BANK,PAYPALProduct Origin:
JAPANShipping Port:
Huangpu,GuangzhouLead Time：

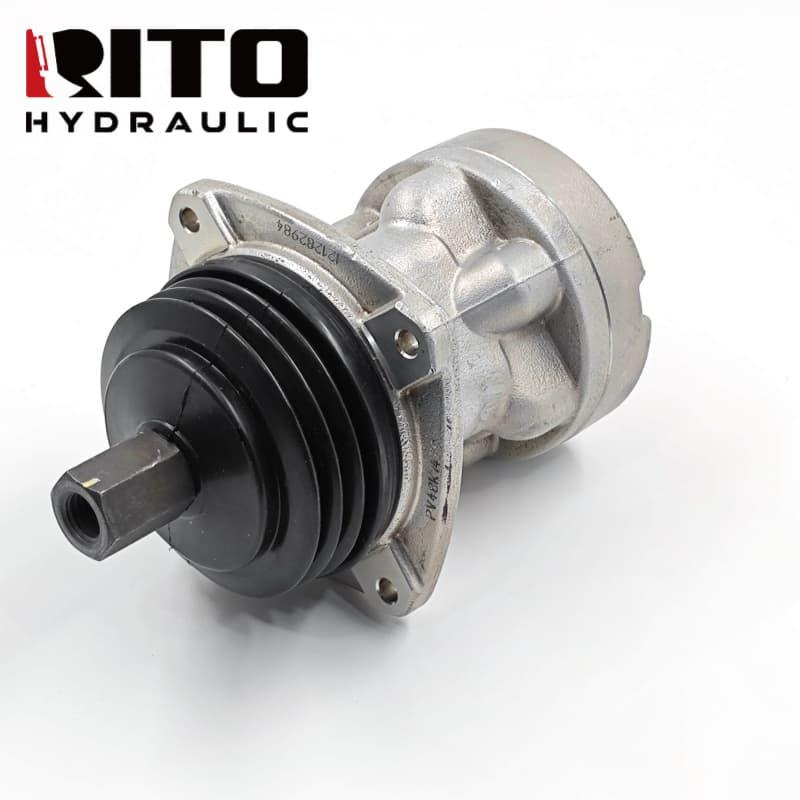

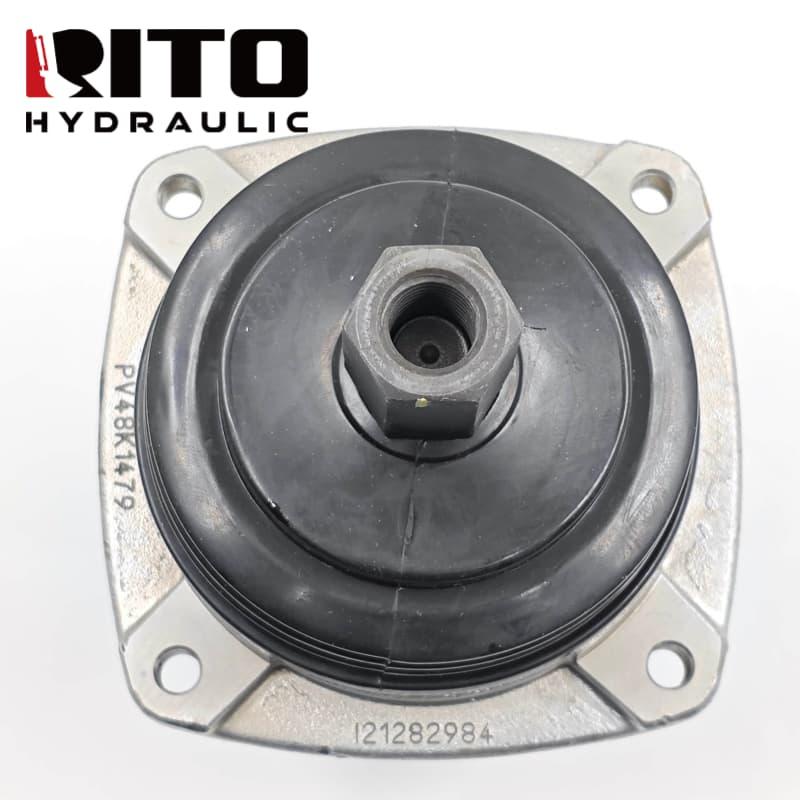

In Stock206-3305 Joystick Pilot Valve (Kawasaki pattern) for Caterpillar 320C excavator. The joystick valve translates multi-axis handle movement into four independent pilot pressure signals that command the main control valve spools. Precision-lapped spool bores, matched return springs and a sealed ball-cam mechanism provide consistent modulation feel across the full joystick stroke.
| Part Number | 206-3305 |
|---|---|
| Part Name | Joystick Pilot Control Valve |
| Compatible Brand | Caterpillar (Kawasaki Pattern) |
| Applicable Models | 320C Excavator |
| Application | Converts joystick movement into four proportional pilot pressure signals for main valve control |
| Material | Precision alloy steel spools and body, sealed cam mechanism |
| Product Color | Metallic finish |
| Working Temperature | -25°C~+80°C |
| Key Function | Provides proportional four-axis pilot signal for boom, arm, bucket and swing control on the 320C |
| Condition | 100% New Aftermarket OEM Quality |
| Packaging | Wooden Case Reinforced Carton Neutral Packing Customized Box |
Four independent precision-lapped spool bores produce separate proportional pressure outputs for boom, arm, bucket and swing, maintaining control axis independence.
All four return springs individually load-tested and matched to within 2% of specified pre-load, ensuring the joystick centres reliably and all axes feel balanced to the operator.
Internal ball-cam mechanism sealed against pilot oil contamination that causes cam wear and stiff, notchy joystick feel on older units.

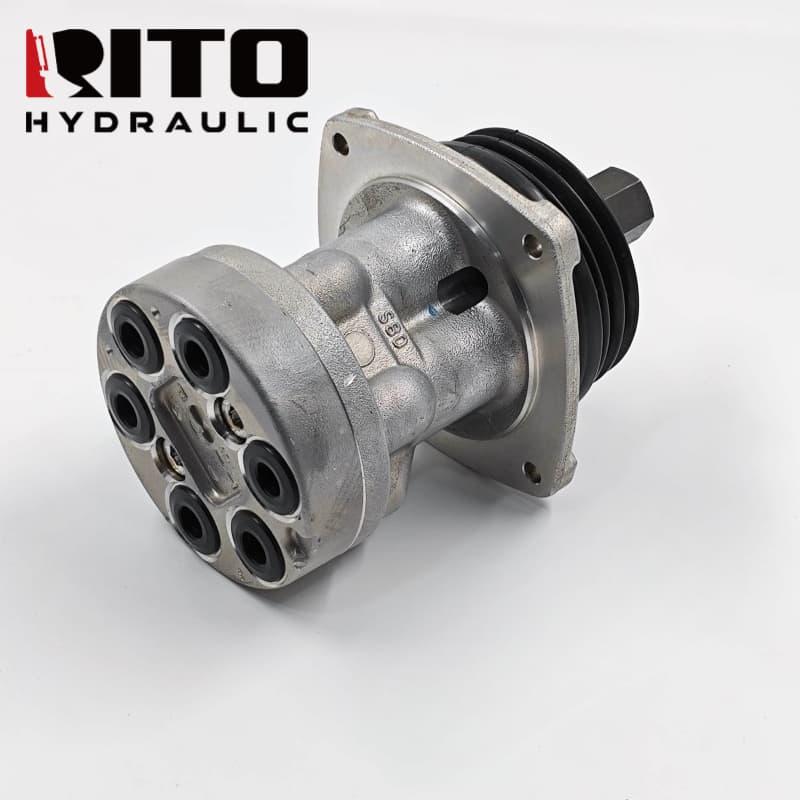

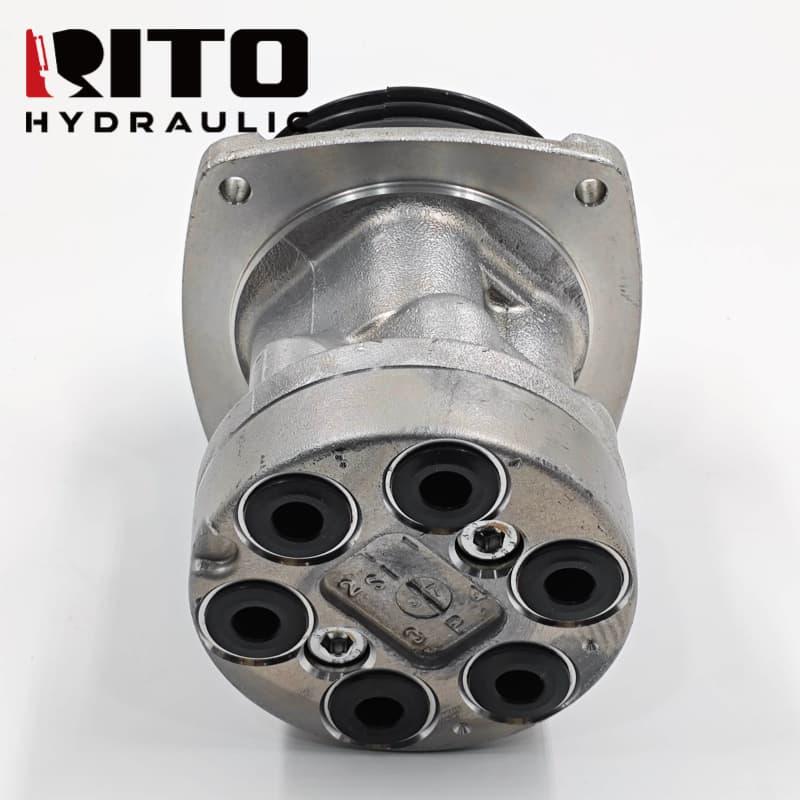

Port arrangement and mounting bolt pattern matches the Kawasaki-style 320C pilot valve housing for direct installation without adaptor plates.
FAQ
Q: What are the signs of a failing 206-3305 joystick pilot valve?
A: One control axis is slower than the other three, the joystick has a notchy feel in a specific direction, control does not return to neutral when released, or pilot pressure on one circuit reads lower than the others on a gauge test.
Q: Can I rebuild the 206-3305 joystick valve with a seal kit?
A: Seal kits restore minor leakage at the housing. However, worn spool bores and deformed cam surfaces cannot be corrected by seals alone. If pilot pressure modulation is non-linear after seal replacement, install a new valve.
Q: Is 206-3305 a genuine Kawasaki valve or an aftermarket pattern?
A: RITO 206-3305 is a precision aftermarket unit manufactured to Kawasaki joystick valve dimensions and specifications for the 320C application, providing OEM-equivalent control feel at aftermarket cost.
Q: How to confirm 206-3305 fits my 320C?
A: Match the existing part number 206-3305 on the old valve body and confirm the machine model is 320C. Provide the machine serial number to our team for cross-reference.
Q: What quality options are available?
A: We provide original, OEM and high-quality aftermarket versions with stable supply capability.
Q:Why Choose RITO?
A:Listed Factory
Stable&Reliable Quality
OEM Factory for Chinese Top Excavator Brands
Supplier to Fortune 500 Companies
