HPV95 pump displacement hunting or regulator response sluggish on your ZX200-3 or ZX225? A worn 2042069 swashplate support loses the precise bearing surface that guides servo-controlled swashplate movement, causing stick-slip that disrupts pump displacement modulation. RITO supplies this original-quality swashplate support to restore smooth, accurate HPV95 displacement control.
Item NO.:
2042069Order(MOQ):
1pcsPayment:
T/T, WESTERN UNION, CHINESE BANK,PAYPALProduct Origin:
JAPANShipping Port:
Huangpu,GuangzhouLead Time：

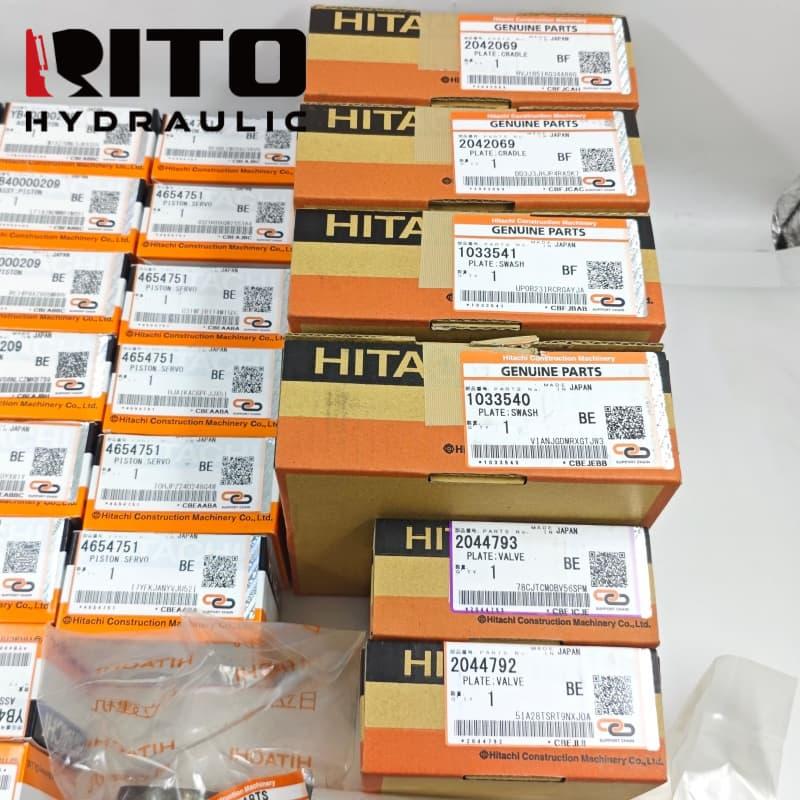

In Stock2042069 Swashplate Support Assembly (Y / Original quality) for Hitachi HPV95 piston pumps on ZX200-3, ZX200-5G, ZX225, ZX240 and ZX210-3 excavators. The swashplate support cradle provides the curved bearing surface that the swashplate rides on during servo displacement adjustment. Worn support surfaces cause stick-slip that disrupts LS system pressure response and fuel efficiency.
| Part Number | 2042069 |
|---|---|
| Part Name | Swashplate Support Assembly (HPV95) |
| Compatible Brand | Hitachi (Original Quality) |
| Applicable Models | ZX200-3, ZX200-5G, ZX225, ZX240, ZX210-3 Excavator |
| Application | Swashplate cradle bearing and pivot support in Hitachi HPV95 variable piston pump |
| Material | High-strength alloy steel, precision-ground bearing surface |
| Product Color | Silver machined finish |
| Working Temperature | -25°C~+60°C |
| Key Function | Provides the bearing surface enabling accurate servo swashplate angle modulation in HPV95 |
| Condition | 100% New OEM Quality |
| Packaging | Wooden Case Reinforced Carton Neutral Packing Customized Box |
2042069 supplied at original (Y) quality grade with precision-ground bearing surface radius and surface finish matched to Hitachi HPV95 OEM specification for accurate servo swashplate response.
Curved bearing surface ground to OEM radius and Ra 0.4 finish, eliminating the stick-slip that disrupts servo-controlled swashplate movement on worn HPV95 supports.
Smooth swashplate movement restores fast, stable response to LS differential pressure changes, normalising ZX200-3 fuel efficiency and actuator speed control.
2042069 covers ZX200-3, ZX200-5G, ZX225, ZX240 and ZX210-3 - the full Hitachi 20-25 tonne HPV95 application range.
FAQ
Q: What symptoms indicate the 2042069 swashplate support is worn on ZX200-3?
A: Pump displacement hunting at constant engine speed, erratic LS system standby pressure, delayed response when load changes, audible knock from the pump body during displacement adjustment.
Q: Should I replace both swashplate supports at the same time?
A: HPV95 uses a matched pair of supports. When one is worn, the other is at similar wear life. Replacing both at one service event restores fully balanced swashplate pivot control and avoids a second pump disassembly.
Q: How does original (Y) quality differ from standard aftermarket for 2042069?
A: Y grade uses original Hitachi-specification materials and dimensional tolerances as the reference, providing bearing surface hardness and radius accuracy consistent with HPV95 OEM performance expectations.
Q: How to confirm 2042069 fits my ZX200-3 HPV95?
A: Match part number 2042069 and confirm pump model is HPV95 on a ZX200-3, ZX225 or ZX240. Provide pump serial number for cross-reference.
Q: What quality options are available?
A: We provide original, OEM and high-quality aftermarket versions with stable supply capability.
Q:Why Choose RITO?
A:Listed Factory
Stable&Reliable Quality
OEM Factory for Chinese Top Excavator Brands
Supplier to Fortune 500 Companies
